Fast USB-DIO Series

Model USB-DIO-16H features 16 high-speed buffered digital inputs or digital outputs at continuous, sustained streaming speeds up to 16 MB/s for fast, unlimited waveform length. The module is capable of 80 MB/s bursts with handshaking signals for synchronizing communications plus an additional 18 bits of general purpose digital I/O. The USB-DIO-16H is a port-powered high-speed USB 2.0 devices and offers hot swapping functionality for quick connect/disconnect whenever you need additional I/O on your USB port.

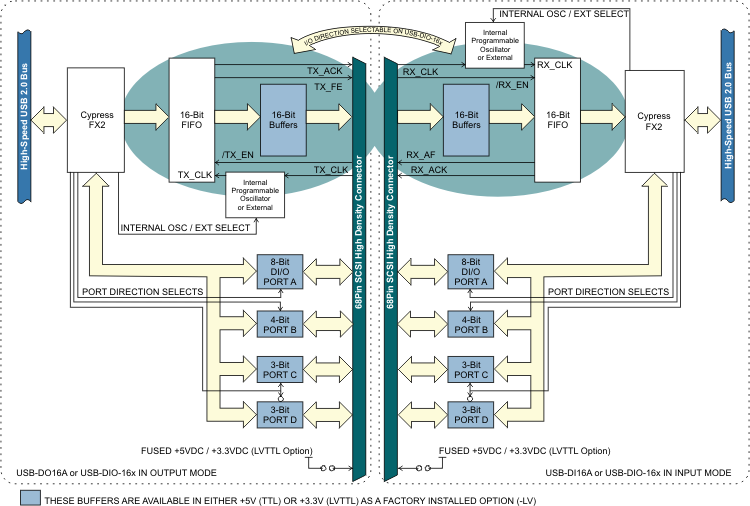

The USB-DIO-16H includes a programmable clock capable of 1 kHz - 40 MHz transfers or you may choose to use your own external clock. In addition to the 16 high-speed I/O’s there are 18 standard TTL-compatible digital I/O channels configurable as 4 separate ports for input or output (see block diagram). All required power is normally supplied to the board via the USB cable, however for higher current sourcing capabilities, optional external power may be used. The I/O wiring connections for the units are via an industry standard high-density pin-in-socket SCSI connector. For external circuits, a jumper selection connects fused +5VDC power to the connector. This resettable fuse is rated at 0.5A.

The series includes four models, choose from input only (USB-DI16A), output only (USB-DO16A), and input/output versions (USB-DIO-16A) with expandable FIFOs (USB-DIO-16H). These modules are especially useful where high-speed data needs to be captured or output for testing or stimulus/response applications. These include testing and debugging, laboratory automation, manufacturing test, image capture, process monitoring, datasource emulation, and many more which require the need for high-speed parallel data transfer.

A type B USB connector is used on all models which features a high retention design that complies with the class 1, Div II minimum withdrawal requirement of over 3 pounds of force. This connector has an orange color-coded insulator to differentiate it from standard USB connectors.

The USB-DIO-16H was designed to be used in rugged industrial environments but is small enough to fit nicely onto any desk or testing station. The board itself is PC/104 sized (3.550 by 3.775 inches) and ships inside a steel powder-coated enclosure with an anti-skid bottom. A DIN rail mounting provision is available for installation in industrial environments.

OEM USB/104 FORM FACTOR

The OEM (board only) version is perfect for a variety of embedded applications. What makes the OEM option unique is that its PCB size and pre-drilled mounting holes match the PC/104 form factor (without the bus connections). This ensures easy installation using standard standoffs inside most enclosures or systems. The board can be added to any PC/104, PCI-104, or PCI/104-Express stack by connecting it to a USB 2.0 port usually included on-board with embedded CPU form factors such as EBX, EPIC, and PC/104. This is especially important since many newer CPU chipsets do not support ISA and have plenty of USB ports. The USB-DIO-16H OEM board can also be installed using standoffs inside other enclosures or systems. For embedded OEM type applications, an additional miniature USB input header is provided in parallel with the type B connector.

High Retention USB Connector

The ever-growing presence of USB in the industrial/military marketplace has driven the need for USB connections to be reliable, dependable, and unfailing. Gone are the days of loose USB connections. A type B USB connector is used on all ACCES USB/104 products which features a high retention design that complies with the class 1, Div II minimum withdrawal requirement of over 3 pounds of force (15 Newtons). This connector has an orange color-coded insulator to quickly differentiate it from standard USB connectors. Using these USB connectors increases reliability in your system and ensures a tight connection. For embedded OEM type applications, an additional miniature USB input header is provided in parallel with the type B connector.

Applications

• Testing and Debugging
• Laboratory Automation
• Manufacturing Test
• Image Capture
• Process Monitoring
• Datasource Emulation
• Embedded OEM

ACCESSORIES

Available accessories include a shielded, round-wire molded cable with latching connectors and a 68-pin screw terminal board for quick and easy connectivity.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Information about our Free Software packages:

ACCES is proud to provide a full suite of software support with every Data Acquisition product. We are committed to supporting the most popular operating systems and platforms for our customers. Currently we are actively supporting XP -> 10, both 32 & 64 bit, including "Server 2008," "Embedded," and "Compact" flavors for all plug-and-play products including PCI, PCI Express, USB, and more. Many products continue to ship with support for additional operating systems such as DOS, Windows 95, 98, Me, NT4, and 2000.

Samples

Among the software we deliver with our products are sample programs in a wide variety of programming languages. These samples are used to demonstrate the software interfaces to our products — and many can be used as-is in your production environments, or to test functionality of the devices out-of-the-box. We're currently actively supporting sample programs in Microsoft Visual C#, Visual Basic, Delphi, and Visual C/C++, with many devices including samples in Borland C/C++ 3.1 for DOS. Additionally we provide National Instruments LabVIEW compatible DLLs and many demonstration VIs for our devices.

Drivers

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.

Setup Programs and Utilites

Our Data Acquisition devices also include a graphical setup utility that walks you through the process of configuring any option jumpers or switches on the device, as well as explaining a little about the various connectors present.

Many devices also include utility programs - little tools to make your use of the device easier, such as EWriter, a program that allows you to read and write data in the user-accessible EEPROM locations on all our USB data acquisitition products; or WinRISC, a "Really Incredibly Simple Communications" terminal program that lets you get started instantly with serial devices.

"Register Level" Documentation

Besides all this software in all these languages and operating systems ACCES has a policy of open and transparent development: none of our lowest-level "register" interfaces are hidden from you — we document every register in every bus card, every command in every serial board, and every usb control transfer in every USB Data Acquisition board. These lowest-level interfaces allow you to develop for our products in ANY operating system or language, regardless of our actively supporting it or having a driver for it. We have customers actively developing in ADA, Android, Python, Java, MATLAB, Solaris, and more, just by referring to our complete low-level interface documentation! And we provide the full source code to all of our drivers, regardless of operating system, to give you an even bigger head start in your own development tasks.

No Fees or Royalties

All of this software is provided at no additional charge, and is licensed under any of a variety of flexible — and royalty free — options. Check out our software license explanation if you'd like more information..

USB and Performance

Our USB Data Acquisition products use our "AIOUSB" driver package in Windows and Linux. This driver package includes 32-bit and 64-bit support, and consists of low-level driver components and a high-level API library. This custom interface driver enables our USB devices to achieve 4000 transactions per second, compared to the competitions' "HID" drivers that cap out around 50 transactions per second. You can read all about the API in the USB Software Reference Manual linked below, and included in every applicable Software Package. (The Linux version of the AIOUSB API is almost identical to the Windows API, and is documented in the aiousb.html file included in the Linux software package.) Like all of our software, full source code is always provided.

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

SPECIFICATIONS

TTL High-Speed Digital I/O’s (LVTTL Optional)

Channels / Groups:		16 / 1
Configured as Inputs:
Logic High:		2.0 to 5.0 VDC
Logic Low:		-0.5 to +0.8 VDC
Configured as Outputs:
Logic High:		4.4 VDC minimum, source 24 mA
Logic Low:		0.44 VDC maximum, sink 24 mA

TTL Standard Digital I/O’s (LVTTL Optional)

Channels / Groups:		18 / 4 (see block diagram)
Configured as Inputs:
Logic High:		2.0 to 5.0 VDC
Logic Low:		-0.5 to +0.8 VDC
Configured as Outputs:
Logic High:		4.4 VDC minimum, source 24 mA
Logic Low:		0.44 VDC maximum, sink 24 mA

Internal Clock

Frequency Range:		1 kHz - 40 MHz

External Clock

Frequency:			40 MHz maximum

Data FIFOs

Width:				16-bit
Depth:				USB-DIO-16H: 128 kByte
USB-DIO-16A, USB-DI16A, USB-D016A: 8 kByte

Environmental

Operating Temperature Range:	Commercial: 0° to 70°C
Industrial:  -40° to +85°C
Storage Temperature Range:	-40° to +85°C
Humidity:			5%-95%, non-condensing
Board Dimension:		3.550 x 3.775 inches
Box Dimension:			4.00 x 4.00 x 1.25 inches

Power

Basic Unit:		100mA typical (no load)
Auxiliary Output:	+5VDC via 0.5A resettable fuse
+3.3VDC via 0.5A resettable fuse (with LVTTL Option)
Bus Powered:		+5VDC provided via USB bus up to 500mA
