High Density USB-AIO OEM Series with 12 or 16-Bit Resolution

The High-Density USB-AIO OEM Series is a highly integrated multifunction data acquisition and control system. The system offers an ideal solution for adding portable, easy-to-install high-speed analog and digital I/O capabilities to any PC or embedded system with a USB port. It performs signal conditioning such as RC filtering, current inputs, RTD measurement, bridge completion, thermocouple break detection, voltage dividers, small signal inputs, and sensor excitation voltage supply. These units are USB 2.0 high-speed devices, offering the highest speed available on the USB 2.0 bus. It is available with 12 or 16-bit analog to digital converters with speeds capable of up to 500kHz (divided equally by the total number of channels configured for use) for 32, 64, 96, or 128 single-ended or differential analog inputs. Groups of eight channels at a time can be independently software configured to accept 18 different input ranges. A unique, real-time internal calibration system allows the unit to continually compensate for offset/gain errors giving a more accurate reading. Additional features include two 16-bit analog outputs, 16 high-current digital I/O lines, and a programmable 16-bit counter—all packaged in a small, rugged, gold-zinc plated industrial enclosure. The counter can be configured in a variety of modes and has the ability to use external signals to trigger and control the scanning of its analog inputs. The unit is plug-and-play allowing a quick connection whenever you need additional I/O on the convenience of a USB port.

The small, compact, multifunction I/O USB-AIO OEM Series units provide the user with everything needed to start acquiring, measuring, analyzing, and monitoring in a variety of applications. These high-density data acquisition and control devices can be used in many current real-world applications such as precision measurement, analysis, monitoring, and control in countless embedded applications.

These units are designed to be used in rugged industrial environments but are small enough to fit nicely onto any desk or testing station. The OEM boards themselves are PC/104 sized (3.550 x 3.775 inches, 90mm x 96mm). A DIN rail mounting provision and extended temperature is available for installation in industrial environments.

The boards feature 18 standard analog voltage input ranges (independently configured) and include a data sample buffer.

Analog to digital conversion starts or "A/D starts" are issued one of three ways: Software Start, Timer Start, or External Trigger Start. A/D starts are software configured to be either rising or falling edge. Additionally, A/D starts are software configured to be Single Channel or Scan. Single Channel samples data once from the next consecutive channel within the enabled set. A Scan samples data from all channels within the set at the fastest possible rate.

A fully programmable 8254 16-bit counter is provided with a maximum input frequency of 10MHz. The clock, gate (inputs) and output can be accessed externally for extended functionality. The counter can be configured in a variety of modes and has the ability to use external signals for its inputs.

Calibration

Advanced calibration models feature a unique real-time internal autocalibration system that allows the unit to compensate for offset/gain errors, giving a more accurate reading. To minimize noise, the board offers a technique called oversampling. The channel-by-channel programmable gain feature enables measurement of an assortment of large and small signals in one scan—all under software control at up to 500kHz. The board's data buffer and ability to trigger the A/D in real time assures synchronized sampling that is unaffected by other computer operations—an essential requirement for signal, vibration and transient analysis where high data rates must be sustained for short periods of time. More information regarding calibration can be found in the product manual.

Each board shipped from ACCES is factory calibrated as part of the production process using a high-quality 7 digit digital voltmeter (DVM) and an extremely stable voltage reference.

Firmware 2.0 Features

Onboard Watchdog Timer. If your application fails to communicate with the device within a specified timeout period (up to hundreds of seconds) the onboard intelligence will change all the output ports and values to the configured "safe" state.

Need a DAC to power up at 1 Volt? Want the digital output port to generate a square wave as soon as the firmware is loaded? Now you can configure the power-on default states for all possible outputs.

Command the onboard intelligence to perform digital input debouncing and latching. Debouncing time constants from hundreds of microseconds to hundreds of milliseconds allows a wide variety of low-pass filtering options. Latching inputs record low- and high-going pulses that your application may otherwise have missed.

PWM allows programmable duty-cycle square wave output on any digital output. MAP is our new Matrix Mapping feature, wherein you can command the onboard intelligence to automagically copy the state of one bit onto another bit, with no computer interaction required.

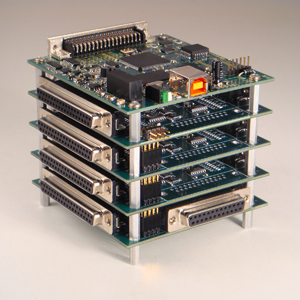

OEM USB/104 FORM FACTOR

The OEM (boards only) version is perfect for a variety of embedded applications. What makes the OEM option unique is that the PCB size and pre-drilled mounting holes match the PC/104 form factor (without the bus connections). This ensures easy installation using standard standoffs inside most enclosures or systems. The board can be added to any PC/104-based stack by connecting it to a USB 2.0 port usually included on-board with embedded CPU form factors such as EBX, EPIC, and PC/104. This is especially important since many newer CPU chipsets do not support ISA and have plenty of USB ports. The USB-AIO OEM Series boards can also be installed using standoffs inside other enclosures or systems. For embedded OEM type applications, an additional micro-fit USB input header is provided in parallel with the type B connector.

High Retention USB Connector

The ever-growing presence of USB in the industrial/military marketplace has driven the need for USB connections to be reliable, dependable, and unfailing. Gone are the days of loose USB connections. A type B USB connector is used on all ACCES USB products which features a high retention design that complies with the class 1, Div II minimum withdrawal requirement of over 3 pounds of force (15 Newtons). This connector has an orange color-coded insulator to quickly differentiate it from standard USB connectors. Using these USB connectors increases reliability in your system and ensures a tight connection. For embedded OEM type applications, an additional micro-fit USB input header is provided in parallel with the type B connector.

Optional Enclosure

The High-Density USB-AIO OEM Series is available packaged in a small, rugged, industrial gold-zinc plated steel enclosure with an anti-skid bottom. The enclosure is useful in industrial environments and protects the boards from potential environmental hazards. The enclosure is silk-screened with diagrammatic connector pin identification and pin assignments to easily reference and make all signal connections. A DIN rail mounting provision and gold-zinc mounting plate is available for panel mounting. Please visit the DAQ-PACK webpage to order the enclosed unit.

Applications

• Equipment monitoring
• Environmental measurements
• Embedded OEM
• Education/Laboratory
• Portable
• Industrial Automation
• Precision Measurement
• Analysis, Monitoring, and Control

ACCESSORIES

Available accessories include a wide variety of cables and screw terminal boards for quick and easy-to-use, out of the box, connectivity. Also, a DIN rail mounting provision and custom connectivity component kits are available.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Information about our Free Software packages:

ACCES is proud to provide a full suite of software support with every Data Acquisition product. We are committed to supporting the most popular operating systems and platforms for our customers. Currently we are actively supporting XP -> 10, both 32 & 64 bit, including "Server 2008," "Embedded," and "Compact" flavors for all plug-and-play products including PCI, PCI Express, USB, and more. Many products continue to ship with support for additional operating systems such as DOS, Windows 95, 98, Me, NT4, and 2000.

Samples

Among the software we deliver with our products are sample programs in a wide variety of programming languages. These samples are used to demonstrate the software interfaces to our products — and many can be used as-is in your production environments, or to test functionality of the devices out-of-the-box. We're currently actively supporting sample programs in Microsoft Visual C#, Visual Basic, Delphi, and Visual C/C++, with many devices including samples in Borland C/C++ 3.1 for DOS. Additionally we provide National Instruments LabVIEW compatible DLLs and many demonstration VIs for our devices.

Drivers

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.

Setup Programs and Utilites

Our Data Acquisition devices also include a graphical setup utility that walks you through the process of configuring any option jumpers or switches on the device, as well as explaining a little about the various connectors present.

Many devices also include utility programs - little tools to make your use of the device easier, such as EWriter, a program that allows you to read and write data in the user-accessible EEPROM locations on all our USB data acquisitition products; or WinRISC, a "Really Incredibly Simple Communications" terminal program that lets you get started instantly with serial devices.

"Register Level" Documentation

Besides all this software in all these languages and operating systems ACCES has a policy of open and transparent development: none of our lowest-level "register" interfaces are hidden from you — we document every register in every bus card, every command in every serial board, and every usb control transfer in every USB Data Acquisition board. These lowest-level interfaces allow you to develop for our products in ANY operating system or language, regardless of our actively supporting it or having a driver for it. We have customers actively developing in ADA, Android, Python, Java, MATLAB, Solaris, and more, just by referring to our complete low-level interface documentation! And we provide the full source code to all of our drivers, regardless of operating system, to give you an even bigger head start in your own development tasks.

No Fees or Royalties

All of this software is provided at no additional charge, and is licensed under any of a variety of flexible — and royalty free — options. Check out our software license explanation if you'd like more information..

USB and Performance

Our USB Data Acquisition products use our "AIOUSB" driver package in Windows and Linux. This driver package includes 32-bit and 64-bit support, and consists of low-level driver components and a high-level API library. This custom interface driver enables our USB devices to achieve 4000 transactions per second, compared to the competitions' "HID" drivers that cap out around 50 transactions per second. You can read all about the API in the USB Software Reference Manual linked below, and included in every applicable Software Package. (The Linux version of the AIOUSB API is almost identical to the Windows API, and is documented in the aiousb.html file included in the Linux software package.) Like all of our software, full source code is always provided.

---

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

Analog Inputs

ADC Type		Successive approximation
Resolution		12 or 16-bit
Sampling rate ("xx" equals number of channels)
 "16-xxA" version	500Ksamples/sec (maximum aggregate)
 "16-xxE" version	250Ksamples/sec (maximum aggregate)
 "12-xxA" version	500Ksamples/sec (maximum aggregate)
 "12-xx" version	250Ksamples/sec (maximum aggregate)
 "12-xxE"version	100Ksamples/sec (maximum aggregate)
Number of channels	32, 64, 96, or 128 single-ended or differential (software selectable)
Unipolar ranges		100mV, 200mV, 400mV, 500mV, 0-1V, 0-2V, 0-2.5V, 0-5V, 0-10V (software selectable)
Bipolar ranges		±100mV, ±200mV, ±400mV, ±500mV, ±1V, ±2V, ±0-2.5V, ±5V, ±10V (software selectable)
Signal Conditioning	Unipolar ranges 0-1mV, 0-5mV, 0-10mV, 0-20mV, 0-50mV
			Bipolar ranges ±1mV, ±5mV, ±10mV, ±20mV, ±50mV
			RC filters
			4-20mA or 10-50mA current inputs
			RTD measurement
			Bridge completion
			Thermocouple break detection
			Voltage Divider
			+10V sensor excitation
Calibration Hardware ("xx" equals number of channels)
 "16-xxA" version	Two on-board references + calibrated real-time output
 "16-xxE" version	Two on-board references
 "12-xxA" version	Two on-board references + calibrated real-time output
 "12-xx" version	Two on-board references
 "12-xxE"version	NONE
System Calibration	Program provided to calibrate entire system
Accuracy		Uncalibrated	0.094% Full-Scale (FS)
			Calibrated(*)	0.0015% FS
Int Nonlinearity Error	0.0046% FS
No Missing Codes	15 bits
Input impedance		1MΩ
A/D Start Sources	Software Start, Timer Start, and External Start Trigger
			(rising or falling edge; software selectable)
A/D Start Enable	Externally supplied (pulled-up; active-high)
A/D Start Types		Single Channel or Scan (software selectable)
Channel Oversampling	0-255 consecutive samples/channel (software selectable)
Overvoltage protection	-40 to +55V
Crosstalk		-60dB @ 500KHz
(*) To achieve best accuracy, one must calibrate to their own standard

Analog Outputs

Number/Type		2/single-ended
Resolution		16-bit
Unipolar Ranges		0-5V*, 0-10V*
Bipolar Ranges		±5V*, ±10V*
Conversion Rate		4kHz per channel
Settling Time		4us typ, 7us max; 1/4 to 3/4 scale to ±2LSBs
Output Current		±25mA per channel

* Factory Options

Digital I/O

Lines			16, programmable as inputs or outputs in groups of 8 (pulled-up)
Input voltage		Logic low:	0V(min) to 0.8V(max)
			Logic high:	2V(min) to 5V(max)
Input current		±20µA (max)
Output voltage		Logic low:	0V(min) to 0.55V(max)
			Logic high:	2V(min) to 5V(max)
Output current		Logic low:	64mA(max) sink
			Logic high:	32mA(max) source

Counter/Timer

Type			82C54 programmable interval counter
Available Counters	CTR0 (CTR1/CTR2 dedicated to A/D starts)
Input Frequency 	10MHz (max) Int. or ext. supplied (sw select; pulled-up)
Counter size		16-bit
Clock 			Internal 10MHz or Externally supplied
			(software selectable; pulled-up)
Clock Period		100ns (min)
Clock Pulse Width High	30ns (min)
Clock Pulse Width Low	40ns (min)
Gate			Externally supplied (pulled-up; active-high)
Output			External (pulled-up)
Input/Output
Voltage/Current		Same as Digital I/O

Environmental

Operating Temperature	0° to +70°C, optional -40° to +85°C
Storage Temperature	-40° to +105°C
Humidity		5% to 90% RH, without condensation
Enclosure Dimensions	(L x W x H) in inches
	-32 (channels)	4.680 x 3.660 x 2.820
	-64		4.680 x 3.660 x 3.260
	-96		4.680 x 3.660 x 3.950
	-128		4.680 x 3.660 x 4.640
Power required		+5V at 320mA typical*, +15V at 39mA
			-15V at 21mA typical (per AIMUX-32 board

Included with your board

The following components are included with your shipment:

• 6’ USB cable
• Software Master CD (PDF user manual installed with product package)
• Printed USB I/O Quick-Start Guide

Accessories
PWR-ACDC-DPK	Power supply, AC/DC triple output, +5V, ±15V $59
CAB-DPK-PWR	Power cable, 8-pin header to circular DIN connector $15
ADAP37M-MINI	Screw terminal adaptor for use with 37-pin female connector $40
ADAP25M	Screw terminal adaptor for use with 25-pin female connector $50
STB-37	DIN-rail mountable screw terminal board for 37-pin connector $39
STB-25	DIN-rail mountable screw terminal board for 25-pin connector $44
CAB37MF-18	Ribbon cable, male to female 37-pin connectors, 18" $29
CAB37MF-xx	As above except "xx" equals length in inches (add $2 per Ft over 18")
CAB25MF-18	Ribbon cable, male to female 25-pin connectors, 18" $29
CAB25MF-xx	As above except "xx" equals length in inches (add $2 per Ft over 18")
DIN-SNAP(-6)	One foot length SNAP-TRACK with four clips for mounting up to two STB-xx screw terminal boards $20 (6" version also available for $15.00)
DPK-DIN-CLIP	DIN rail mounting provision $XX
DPK-MOUNT	Panel mounting provision $XX
J37Mxx Kit	Custom connectivity component kit for 37-pin D-Sub connector
J25Mxx Kit	Custom connectivity component kit for 25-pin D-Sub connectorxx
Signal Conditioning Options (per group of 8 consecutive channels):
Call	Gain of x1, x2, x5, x10, x50, x100, x1000, or ÷2, ÷4, ÷5, ÷8, ÷10, or fully custom ratios
Call	RC filters, 10n usec, or custom
Call	4-20mA or 10-50mA current inputs
Call	+10V sensor excitation
Call	RTD's (100 Ohm or custom )
Call	Bridge completion, specify bridge type and values
Call	Junction temperature diodes
Call	Thermocouple inputs with cold-junction compensation (CJC) temperature sensor
Call	Break detection
Call	Voltage divider, specify attenuation level and source impedance
Model Options (call for pricing)
-T	Extended Operating Temperature (-40°C to +85°C)
-MTC	Thermocouple Reference Junction Sensor installed with two DB37 terminal blocks (ADAP37M-MINI)
