PAD128

PCMCIA Data Acquisition Card

  • This product has been discontinued. Please contact us for help in finding a suitable replacement.

    • Features
    • Type II PCMCIA Card
    • 12-bit analog-to-digital converter
    • Up to eight analog inputs
    • 32-sample FIFO buffer
    • Two eight-bit digital I/O ports
    • Designed, made, supported, and manufactured in the USA

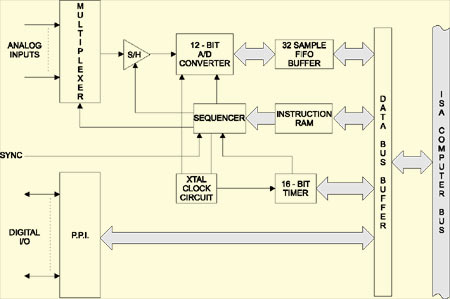

    FUNCTIONAL DESCRIPTION

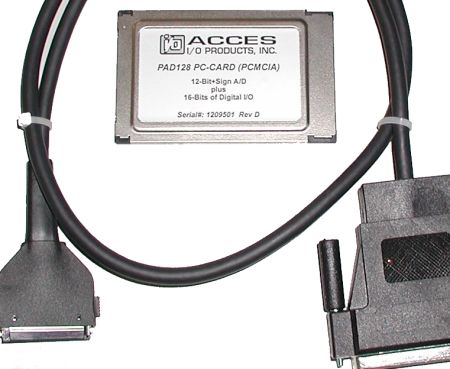

    Model PAD128 is a type II PCMCIA card (PC card). It performs data acquisition on up to eight analog inputs and provides parallel digital input/output capability for up to 16 bits. A 24-inch long cable that mates with the PAD128 on one end and has a 37-pin male sub-D connector on the other end is available as Model PAD128CAB.

    DATA ACQUISITION

    The analog-input configuration is software controlled on a channel-by-channel basis and you can have any combination of single-ended and differential inputs that adds up to eight pins. The PAD128 has the following input range capabilities:
    • Channel 0 and 1: +/-10V
    • Channel 2 and 3: +/-5V
    • Channel 4 and 5: 0-5V
    • Channel 6 and 7: 0-100mV

    Settle time for the input Multiplexer and Sample and Hold amplifier "front end" is programmable to permit use with signals that have source impedances higher than 80 ohms. The analog-to-digital converter provides 12-bit resolution on a 5-volt input voltage range. Overall throughput rate is a maximum of 140,000 samples/second. Conversions can be initiated either by an external "sync" input to the card or by a programmable on-card pacer clock. The A/D converter has self-calibration capability (to eliminate linearity and zero-drift errors) and a 32-sample FIFO buffer. The buffer allows accumulation of data while the computer is servicing other requests.

    DIGITAL INPUT/OUTPUT

    The PAD128 also has capability for 16 digital input/output bits that can be programmed as inputs or outputs on a groups-of-eight basis. This function is based on the industry-standard type 8255 programmable peripheral interface and the A and B ports are available for use.

    SPECIAL FUNCTIONS

    Control logic in the PAD128 uses a programmable array and special functions can be factory programmed. If you have need for special functions such as limit comparison, interrupt logic, etc., give us a call.

    Specifications

    Return to Product Description


    Data Acquisition

    • Analog Inputs: As many as 8 single-ended inputs or four differential inputs or both but not to exceed use of eight inputs pins
    • Input Voltage Range: Ch. 0 and 1: +/-10V; Ch. 2 and 3: +/-5V; Ch. 4 and 5: 0 to 5V; Ch. 6 and 7: 0 to 100mV
    • Common Mode Rejection Ratio (diff'l inputs): 75 db at power line frequency (20 Khz sample rate)
    • Maximum Input Overvoltage w/o Damage: -5V to +10V
    • Full-scale Error (after auto-cal): ±1/2 LSB typical, ±2 LSB max.
    • Integral Linearity (after auto-cal): ±1/2 LSB typical ±1 LSB max.
    • Resolution: 12 bits
    • Throughput Rate: 140K samples/sec.

    Digital Input/Output

    Inputs
    • Logic High: 2.0 to 5.0 VDC
    • Logic Low: -0.3 to 0.8 VDC
    • Input Load (high): +3.2 uA
    • Input Load (low): -250 uA
    Outputs
    • Logic High: 2.5 VDC min., source 200 uA
    • Logic Low: 0.5 VDC max., sink 1.7 mA

    Environmental

    • Operating Temperature Range: 0 to +60oC
    • Storage Temperature Range: -50 to +120oC
    • Humidity: 5% to 95%, non-condensing.

    Power Required

    • Operating: 5 VDC at 47 mA typical, 65 mA max.

    Form Factor

    • PCMCIA type II
    Regulatory Compliance
    Declaration of Conformity, and Test Reports are on file. Users must use appropriate shielded cables.




    ModelPrice (USD)
    PAD128289.00
