PCIe-DIO-48JPLS Family of 24 and 48 Digital Input/Output Cards
PCIe Digital I/O Cards with CoS IRQ and 68-pin SCSI connector
Features
- 48 or 24 channel high-current TTL digital I/O lines
- Change of State (COS) detection and interrupt capabilities
- Compatible with industry standard 8255 PPI
- 68-pin SCSI pin-in-socket female connector on card mounting bracket
- User interrupt pin
- All 48 digital I/O lines buffered with 32mA source / 64mA sink
- Four and eight bit ports independently selectable for inputs or outputs
- Jumper configurable pull-ups/-downs on DIO lines
- 5V or 3.3V VCCIO configurable by jumper selection
- Poly-fused VCCIO available to the user on each I/O header
- Easy upgrade from PCI-DIO-48JPLS Family devices
- Designed, made, supported, and manufactured in the USA

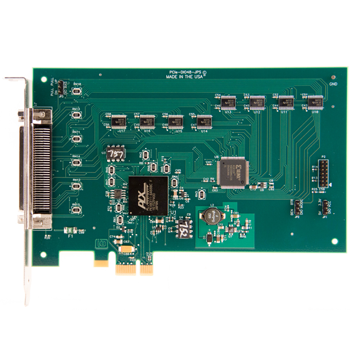

![](/cards/PCIe-DIO-48JPLS.png)
![](/images/enlarge.jpg)
FACTORY OPTIONS
- Non-latching connector
- Card without Change-of-State IRQ feature
- RoHS compliant version
- Extended temperature operation (-40°C to +85°C)
- Support for Wind River VxWorks (call for ordering information)
The PCIe-DIO-48JPS is a 48 channel PCI Express (PCIe) card designed for use in a variety of digital I/O applications. It uses the high speed PCI Express bus to transfer digital data to and from the card. The digital I/O is compatible with 8255 PPI chips making it easy to program. This also allows for simple and trouble-free migration from other ACCES PCI digital I/O cards . The card features a x1 lane PCI Express connector which can be used in any available x1, x2, x4, x8, x12, or x16 PCI Express expansion slot. The card is 6.6 inches in length and 4.2 inches seated height.

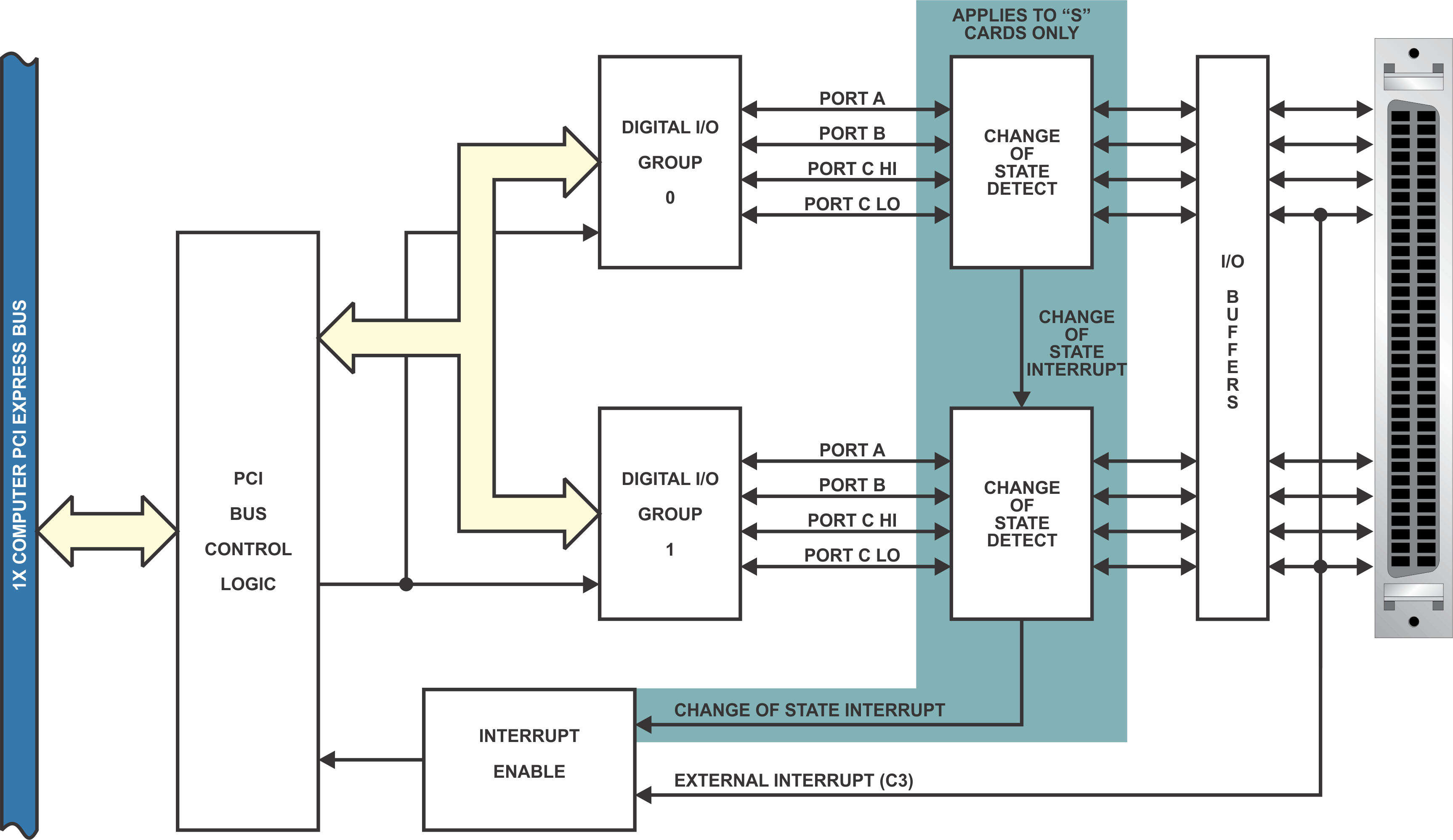

Two 24 line groups each have three 8-bit I/O ports designated A, B and C. Port C can be further divided into two 4-bit nybbles. Each port can be programmed as inputs or outputs. Change of State (COS) detection and interrupt capabilities are designed to relieve software from polling routines that can consume valuable processing time. Each port can be programmed for detecting state changes on their lines, in which any changes of the enabled port's bits (low-to-high or high-to-low) will generate an IRQ. An ISR (interrupt service routine) then polls the port to determine which bit changed state and clear the interrupt.
This card is an excellent choice for system designs that would benefit from using a wiring harness to connect up to a complete system. This is due to the 68-pin I/O connector being located on the card mounting bracket, it is a much cleaner card solution to use compared to routing ribbon cables through a cutout on the card mounting bracket, then plugging them onto the headers on the side of the card.
Applications
The PCIe-DIO-48JPLS is excellent for use in a multitude of applications requiring digital control or monitoring such as in test equipment, instrumentation, lab automation, and process control. The board is capable of monitoring electrical devices such as motor controllers, powered switches, dry contacts, thermostats, limit switches, push buttons etc.. The PCIe-DIO-48JPLS Series can be used in the following markets.
- Process Monitoring
- Manufacturing/Production Test
- Machine Control
- Monitoring and Control
- Security Systems, Energy Management
- Industrial Automation
- Factory Automation
- Laboratory Automation
- Embedded OEM
Accessories
Available accessories include ribbon cables and shielded round-wire molded cable assemblies. Screw terminal boards and DIN-rail mounts are also available for a variety of quick and easy connectivity options.
SOFTWARE
The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
Downloads
Available Reference Manuals
- View / Download the PCIe-DIO-48JPLS Family Manual (.PDF)
Available Software Downloads
Available Datasheets
- View / Download the PCIe-DIO-48JPLS Family Data Sheet (.PDF)
Drivers and Downloads
Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents
Custom Software
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.
Further information about available ACCES Software:
- Redistributing Windows Drivers
- A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
aioWDM.VxWorks
ACCES has successfully partnered with Wind River to bring our entire line of PCI and PCI Express DAQ cards to VxWorks 7!
VxWorks 7 VxBus Gen 2 drivers, with easy-to-use API-libraries, are available for this product, including full source and sample code.
Designed to be compatible with our AIOWDM.dll Windows driver & API, this kernel module adds zero% CPU-cycle overhead to your VxWorks runtimes while allowing the lowest-latency hardware register access possible.
You can find more information about our VxWorks libraries and services on our Wind River Silver Partner page.
Digital Signaling
- VCCIO 5V (TTL) or 3.3V (LVTTL)
Digital Inputs
- Logic High 2.0V to VCCIO
- Logic Low 0V to 0.8V
- Current ±20uA (max)
Digital Ouputs
- Logic High 2.0V (min); 32mA source
- Logic Low 0.55V (max); 64mA sink
- Power Output VCCIO Via 0.5A resettable fuse
Environmental
- Operating Temperature: Commercial 0° to 70°C; optional Industrial -40° to +85°C
- Storage Temperature: -55° to +150° C
- Humidity: 5% to 95%, non-condensing.
- Card Dimensions: 6.62" long by 4.2" high (seated)
- I/O Connector TE Receptacle Assy, .050 Series, Amplimite P/N 1761028-4
Regulatory Compliance
- This product is in full compliance with CE requirements.
OEM and volume pricing available, please call us.
Model | Price (USD) |
---|---|
PCIe-DIO-48JPLS | 379.00 |
PCIe-DIO-48JPL | 315.00 |
PCIe-DIO-24JPLS | 379.00 |
PCIe-DIO-48JPS | 379.00 |
PCIe-DIO-48JP | 315.00 |
PCIe-DIO-24JPS | call |
