PCIe-DA16-6 Family

The PCIe-DA16-6 Family are 6.6" cards that can be installed in any PCIe slot. They provide 2, 4, or 6 digital-to-analog converters (DACs) at 12- or 16-bit and 16 bits of digital I/O.

The DACs can be updated individually or simultaneously. The boards feature a variety of unipolar and bipolar voltage ranges or a 4-20 mA current range (sink) for each DAC giving the user a variety of options. To ensure that there will not be excessive outputs to external circuits when the board is powered on, automatic circuits limit analog outputs to zero volts until initialized via software command.

Each DIO line is buffered and capable of up to 32mA source/sink. The VCCIO logic level is globally configured via jumper selection as 5V or 3.3V. Also, ports are factory configured as pull-up (to the selected VCCIO) through 10kΩ resistor networks. These groups can be configured for pull-down as a factory option.

Calibration is supported with oncard non-volatile memory to hold per-channel per-range mX+B constants, and the switch-selected per-channel range selection can be read in real-time by software.

I/O connections for the DACs and DIO are made at a 37-pin D-subminiature Male connector on the card mounting bracket.

SOFTWARE

The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Information about our Free Software packages:

ACCES is proud to provide a full suite of software support with every Data Acquisition product. We are committed to supporting the most popular operating systems and platforms for our customers. Currently we are actively supporting Windows XP through Windows 10, including "Server 2008," "Embedded," and "Compact" flavors in both 32-bit and 64-bit for all plug-and-play products including PCI, PCI Express, USB, and more. Many products continue to ship with support for additional operating systems such as DOS, Windows 95, 98, Me, NT4, and 2000.

Samples

Among the software we deliver with our products are sample programs in a wide variety of programming languages. These samples are used to demonstrate the software interfaces to our products — and many can be used as-is in your production environments, or to test functionality of the devices out-of-the-box. We're currently actively supporting sample programs in Visual C# and Delphi with many devices including samples in Visual Basic and Visual C/C++, as well as Borland C/C++ 3.1 for DOS. Additionally we provide National Instruments LabVIEW compatible DLLs and demonstration VIs for many of our devices.

Drivers

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the Linux kernels 2.6 and newer and recent macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.

Setup Programs and Utilites

Our Data Acquisition devices also include a graphical setup utility that walks you through the process of configuring any option jumpers or switches on the device, as well as explaining a little about the various connectors present.

Many devices also include utility programs - little tools to make your use of the device easier, such as WinRISC, a "Really Incredibly Simple Communications" terminal program that lets you get started instantly with serial devices.

"Register Level" Documentation

Besides all this software in all these languages and operating systems ACCES has a policy of open and transparent development: none of our lowest-level "register" interfaces are hidden from you — we document every register in every bus card, every command in every serial board, and every usb control transfer in every USB Data Acquisition board. These lowest-level interfaces allow you to develop for our products in ANY operating system or language, regardless of our actively supporting it or having a driver for it. We have customers actively developing in ADA, Android, Python, Java, MATLAB, Solaris, and more, just by referring to our complete low-level interface documentation! And we provide the full source code to all of our drivers, regardless of operating system, to give you an even bigger head start in your own development tasks.

No Fees or Royalties

All of this software is provided at no additional charge, and is licensed under any of a variety of flexible — and royalty free — options. Check out our software license explanation if you'd like more information.

---

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

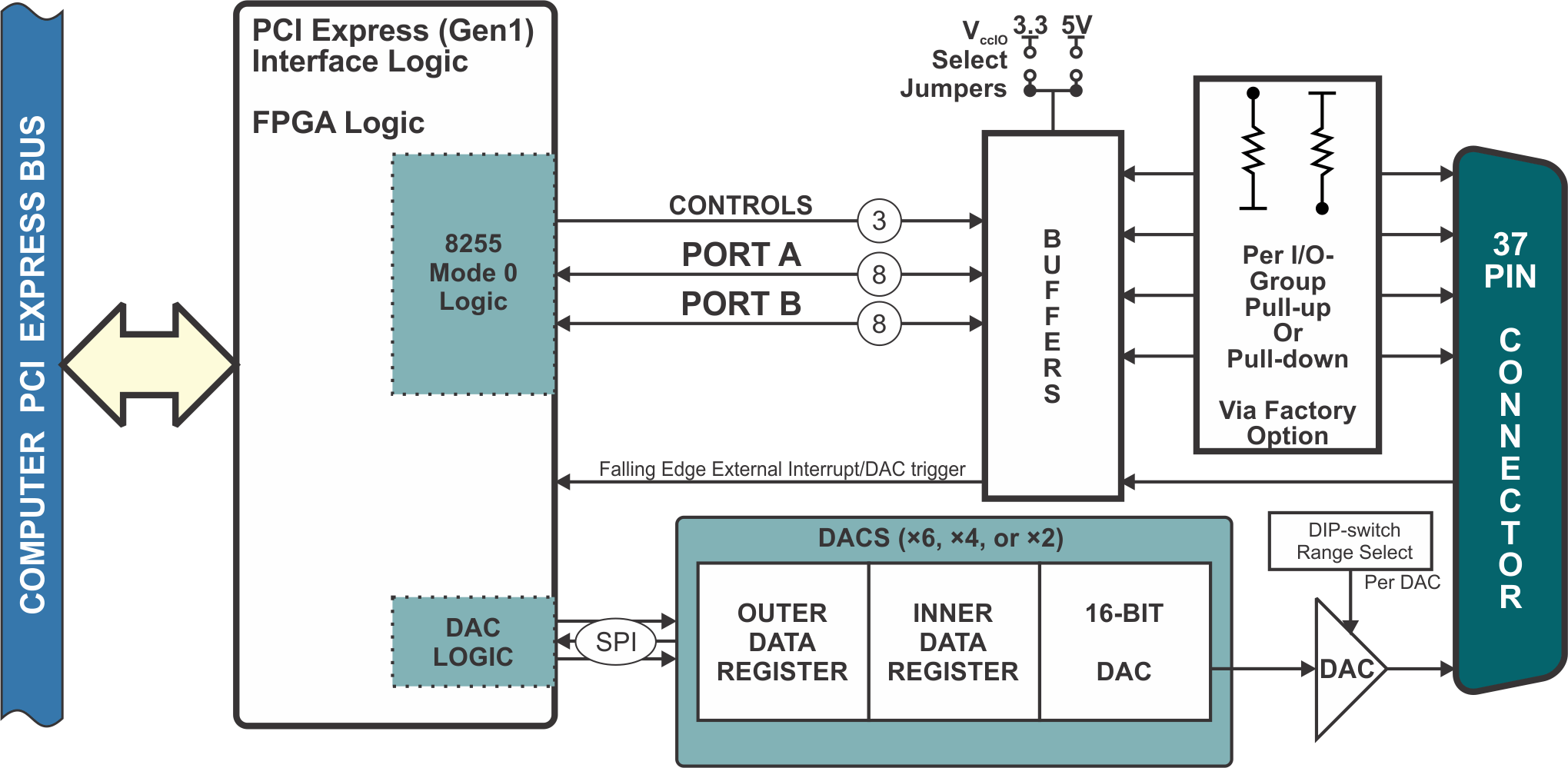

Block Diagram

Specifications

Analog Outputs

• Channels: 6, 4, or 2
• Resolution: 16 or 12 bits
• Unipolar Ranges:0-2.5, 0-5, 0-10 VDC
• Bipolar Ranges:±2.5, ±5.0, ±10.0 VDC
• Current Range: 4-20 mA (with external excitation voltage of 8-36VDC)
• Output Drive: 5 mA maximum
• Output Resistance: Less than 0.1Ω
• Relative Accuracy: ±1LSb max, ±½LSB typical
• Diff.Linearity: ±½LSB integral non-linearity over rated temperature range
• Monotonicity: 16 bits over operating temp
• Settle time: 5 usec ¼- to ¾-span and ¾- to ¼-span, to ±2LSB

Digital I/O

• Lines: 24; Ports A, B, CHi and CLo
• Type: 8255 compatible
• Pull-up/-down: 10kΩ (pulled-up by default)
• Logic Levels: VCCIO jumper selectable
VCCIO = 5V

• Input Low: ≤1.5V @ ≤2µA
• Input High: ≥3.5V @ ≤2µA
• Output Low: ≤0.55V @ 32 mA
• Output High: ≥ 3.8V @ 32mA
VCCIO = 3.3V

• Input Low: ≤0.8V @ ≤2µA
• Input High: ≥2.0V @ ≤2µA
• Output Low: ≤0.55V @ 24 mA
• Output High: ≥ 2.4V @ 24mA

Environmental

• Operating Temperature: 0 to +70°C
• Storage Temperature: -55 to +150°C
• Humidity: 5% to 95% without condensation
• Size: 6.6" (168 mm) long

DC Power Output

• VCCIO VDC at 500 mA is available on the 37-pin connector.

Regulatory Compliance

• This product is in full compliance with CE requirements.
