PCIe-COM-4SMDB and RJ Family

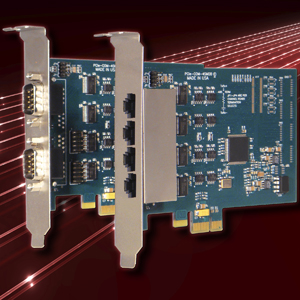

ACCES I/O’s PCI Express multi-port multi-protocol serial communication cards deliver four (PCIe-COM-4SMDB, PCIe-COM-4SMRJ) or two (PCIe-COM-2SMDB, PCIe-COM-2SMRJ), high-speed serial communication ports for use in a wide variety of applications. The cards were designed to offer serial compatibility with the PCI Express bus and to be used by system integrators and manufacturers in the design of industrial and commercial systems. Each COM port is capable of supporting data rates up to 3Mbps and implements full modem control signals in RS-232 mode to ensure compatibility with a broad variety of serial devices.

Perfect for existing serial peripherals to connect directly to the industry standard pin-out of the DB9M connectors or via a RJ45 connector. The card features a x1 lane PCI Express connector which can be used in any available x1, x2, x4, x8, x12, or x16 PCI Express expansion slot.

Available accessories include a broad range of cables, screw terminal boards and breakout connection boxes for a variety of quick and easy connectivity options.

SPECIAL ORDER

Please contact ACCES with your precise requirement. Examples of special orders would be conformal coating, custom software, etc., we will work with you to provide exactly what is required.

SOFTWARE

A complete driver support package is provided including an easy-to-use Windows terminal program for testing your COM ports. This simplifies the verification of proper COM port operation. The card installs as standard COM ports in all operating systems including DOS, Linux (including Mac OS X) and 32-bit and 64-bit Windows.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

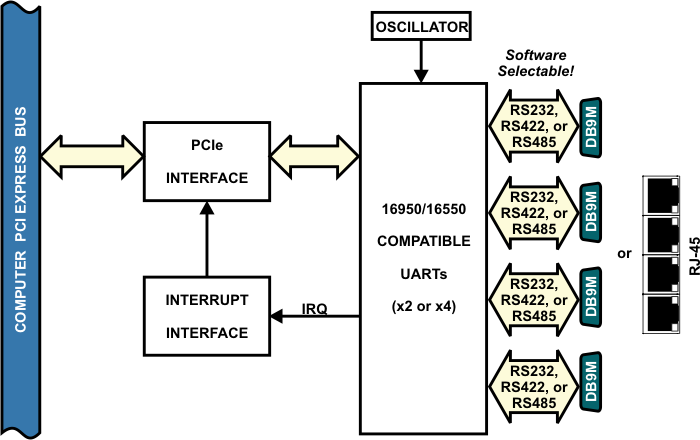

Asynchronous Communications Interface

• I/O connection: DB9 or RJ45
• Serial ports: 4 (or 2) RS-232/422/485
• Serial data rates: RS-232=460.8k (921.6k avail); RS-422/485=3Mbps
• UART: Quad type 16C950 with 128-byte transmit & receive FIFO, 16C550 compliant
• ESD Protection: ±15kV on all signal pins
• Character length: 5, 6, 7, 8, or 9 bits
• Parity: Even, Odd, None, Space, Mark
• Stop interval: 1, 1.5, or 2 bits
• Flow Control: RTS/CTS and/or DSR/DTR, Xon/Xoff

Environmental

• Operating temperature: Commercial: 0°C to +70°C
• Industrial: -40°C to +85°C
• Storage temperature: -65°C to +150°C
• Humidity: 5% to 95%, non-condensing
• Power required: +3.3VDC @ 0.8W (typical)
• Size: 4.722" long x 3.375" high (120 mm long x 85.725 mm high)
