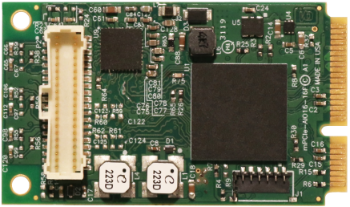

mPCIe-AIO16-16F
PCI Express Mini Card with 16 Single-Ended or 8 Differential Analog Inputs and 4 Analog Outputs
FEATURES
- PCI Express Mini Card (mPCIe) Type F1, Multi-Function DAQ with latching I/O connectors
- 16-Bit, 2Msps Complete Data Acquisition System
- Sustained Sampling Rates Up To 1Mhz @ 2 Simultaneous Channels
- High Impedance, 16-Channel Input: 1 MΩ
- Differential Input Voltage Ranges from ±0.64V to ±24.576V
- Flexible, Software Configured Functionality
- 16 Single-Ended (Pseudo-Differential) or 8 Differential Inputs
- Fast DMA transfers from 8k Sample FIFO
- Four 16-Bit Analog Outputs
- Independently Programmable Outputs Ranges: 0V To 5V, 0V To 10V, ±2.5V, ±5V, ±10V
- DAC Outputs Drive ±10Ma Guaranteed
- 2 Independent Digital I/O with alternate functions including ADC and DAC Trigger
- RoHS Standard
- Available soon in M.2 form!
- Designed, made, supported, and manufactured in the USA
![](/cards/mPCIe-AIO16-16F.png)
![](/images/enlarge.jpg)
FACTORY OPTIONS
- 4-20mA or 10-50mA ADC input ranges
- Extended temperature operation (-40°C to +85°C)
- Support for Wind River VxWorks (call for ordering information)
The mPCIe-AIO16-16F is an ideal solution for adding high-speed analog I/O capabilities to any computer with an mPCIe slot.

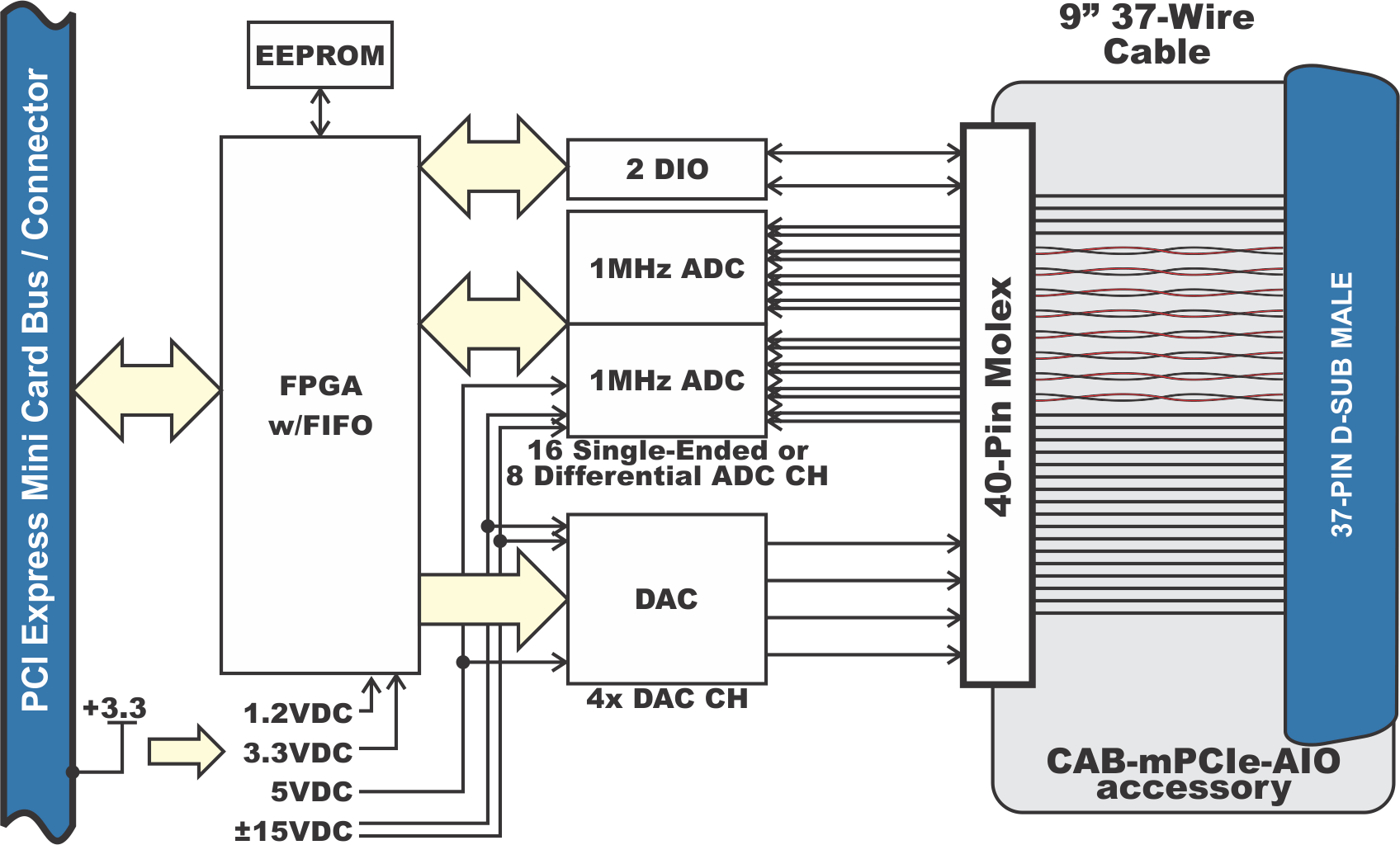

The mPCIe-AIO16-16F is a 16-bit resolution A/D & D/A board with two simultaneous 1MHz A/D converters, providing 8 single-ended (pseudo-differential) or 4 differential analog inputs, per ADC. Each channel can be independently software configured to accept any input ranges.
Two digital I/O bits, each individually software programmable for use as an input or an output. These bits feature software-selectable alternate functions including use as ADC trigger, DAC trigger, and more.
Four analog outputs with uni- and bipolar 5 and 10 volt ranges and a ±2.5V range round out the feature set.
This tiny analog I/O board provides the user with everything needed to start acquiring and controlling signals in a variety of applications. The mPCIe-AIO16-16F data acquisition board can be used in many current real-world applications such as embedded equipment monitoring, precision PC-based and portable environmental measurements, and mobile data acquisition. The board is designed to be used in rugged industrial environments and is double sided, mPCIe F1 sized.
Applications: Optical Networking, Instrumentation, Multichannel Data Acquisition and system monitoring, Automatic Test Equipment, Process Control and Industrial Automation, Power line monitoring.
Special Order
Please contact ACCES with your precise requirement. Examples of special orders would be conformal coating, custom software or product labeling, and more. We will work with you to provide exactly what is required.
Accessories and Connections
Available accessories include a variety of screw terminal boards for quick and easy connectivity as well as 2mm and 2.5mm mounting hardware. Alternately, custom hardware cables and/or interfaces can be produced to fit your specific application requirement.
SOFTWARE
The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
Downloads
Available Reference Manuals
- View / Download the M.2- and mPCIe-AIO16-16F Manual (.PDF)
Available Datasheets
- View / Download the M.2- and mPCIe-AIO16-16F Data Sheet (.PDF)
Drivers and Downloads
Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents
Custom Software
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.
Further information about available ACCES Software:
- Redistributing Windows Drivers
- A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
aioWDM.VxWorks
ACCES has successfully partnered with Wind River to bring our entire line of PCI and PCI Express DAQ cards to VxWorks 7!
VxWorks 7 VxBus Gen 2 drivers, with easy-to-use API-libraries, are available for this product, including full source and sample code.
Designed to be compatible with our AIOWDM.dll Windows driver & API, this kernel module adds zero% CPU-cycle overhead to your VxWorks runtimes while allowing the lowest-latency hardware register access possible.
You can find more information about our VxWorks libraries and services on our Wind River Silver Partner page.
PC Interface
- PCI Express Mini Card: Type F1 "Full Length" V1.2
Analog Inputs
- ADC Type: Successive Approximation
- Resolution: 16-bit
- Sampling Rate: 2Msamples/second aggregate (1MHz per ADC, simultaneous)
- Number of Channels: 16 Single-Ended (Pseudo-differential, w/2x COMMON) or 8 Differential, or 8 Single-Ended AND 4 Differential. Software selectable per ADC
- Ranges: ±0.64V, ±1.28V, ±2.56V, ±5.12V, ±10.24V, ±20.48V, & ±24.576V (software selectable, per-channel)
- 4-20mA or 10-50mA: Factory Option
- Accuracy: 0.094% Full-Scale (FS) Uncalibrated, 0.0015% FS Calibrated (for best accuracy, system calibration is recommended)
- Integral Nonlinearity Error: 0.0011% FS
- No Missing Codes: 16 bits
- Input Impedance: 1MΩ
- Overvoltage Protection: -40 to +40V
- Crosstalk: -53dB @ 1MHz, -84db @ 500kHz
Analog Outputs
- Number: 4
- Type: Single-Ended
- Resolution: 16-bit
- Unipolar Ranges: 0-5V, 0-10V
- Bipolar Ranges: ±2.5V, ±5V, ±10V
- Conversion Rate: ≥125kHz per channel
- Settling Time: 4µs typical, 7µs max; ¼ to ¾ scale, to ±2 least-significant bits
- Output Current: ±10mA per channel
- Alternate Functions: ADC Conversion Start, ADC Scan Start, ADC Trigger, ADC Gate, DAC Trigger ("LDAC"), External IRQ
Digital Inputs/Outputs
- Lines: 2, individually software configurable as input or output
- Input voltage:
- Logic low: 0V to 0.8V
- Logic high: 2V to 5V
- Input current: ±20µA (max)
- Output voltage:
- Logic low: 0V to 0.55V
- Logic high: 2V to 5V
- Output current:
- Logic low: 64mA sink (max)
- Logic high: 32mA source (max)
Environmental
- Temperature
- Operating: 0°C to 70°C (order -T option for industrial temperature -40°C to +85°C)
- Storage: -40°C to 105°C
- Humidity: 5% to 95%, non-condensing
- Power required: +3.3VDC @ 300ma (typical)
Physical
- Weight: 6.2 grams
- Size
- Length: 50.95mm (2.006″)
- Width: 30.00mm (1.181″)
- I/O connector
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
Regulatory Compliance
- This product is designed to be in full compliance with CE requirements.
