M.2-DIO-24S and M.2-DIO-24
24-Channel Digital I/O with Change-of-State (COS) M.2 Card
FEATURES
- M.2 2260/2280 "B/M" size Card with latching I/O connectors
- 24 high-current LVTTL DIO lines (24ma source/sink)
- Change-of-State (COS) detection IRQ generation
- 10k ohm pull-up resistors
- Four and eight bit ports independently software selectable for use as inputs or outputs
- All signals brought out to optional panel-mountable 37-pin male D-Sub connector
- RoHS standard
- Designed, made, supported, and manufactured in the USA
![](/cards/M.2-DIO-24S Treated.png)
![](/images/enlarge.jpg)
FACTORY OPTIONS
- Industrial operating temperature (-40°C to +85°C)
- CMOS signaling with user supplied VCCIO (5V)
- Support for Wind River VxWorks (call for ordering information)
The M.2-DIO-24S is a 2260/2280 size M.2 Card and optional cable assembly (D-Sub 37-pin Male connector) designed to be easily panel-mounted in any application environment. It uses the high speed PCI Express bus to transfer digital data to and from the card. The digital I/O is compatible with 8255 PPI chips making it easy to program. This also allows for simple and trouble-free migration from other ACCES PCI and PCI Express digital I/O cards, but also provides for advanced features enabled by the onboard FPGA logic.

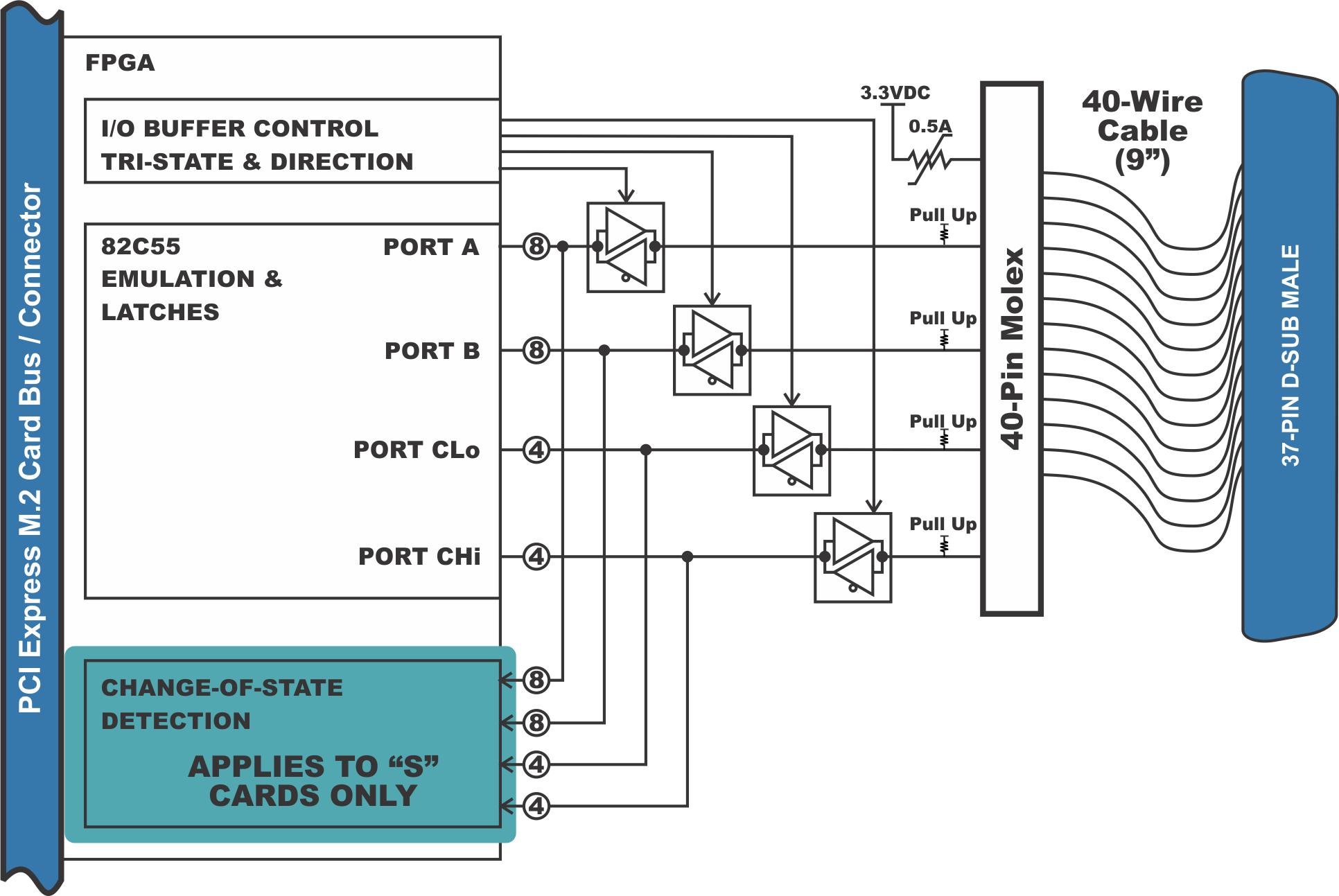

The card provides three 8-bit I/O ports designated A, B and C. Port C can be further divided into two 4-bit nybbles. Each port can be programmed as inputs or outputs. Change of State (COS) detection and interrupt capabilities are designed to relieve software from polling routines that can consume valuable processing time. Each port can be programmed for detecting state changes on their lines, in which any changes of the enabled port's bits (low-to-high or high-to-low) will generate an IRQ. An ISR (interrupt service routine) then determines which bit changed state and clears the interrupt.
Applications
The M.2-DIO-24S is excellent for use in applications sensing inputs such as switch closures, 5V, LVTTL, CMOS logic and controlling external relays, driving indicator lights, and more. The M.2-DIO-24S can be used in the following markets.
- Process Monitoring
- Manufacturing/Production Test
- Machine Control
- Monitoring and Control
- Security Systems, Energy Management
- Industrial Automation
- Factory Automation
- Laboratory Automation
- Embedded OEM
Special Order
Please contact ACCES with your precise requirement. Examples of special orders would be pull-down resistors, conformal coating, a version with user supplied 5VDC VCCIO, custom software or product labeling, and more. We will work with you to provide exactly what is required.
Accessories and Connections
Available accessories include a 40-pin to male DB-37 cable and screw terminal boards for quick and easy connectivity. I/O on the card is accessed via a 40-pin latching Molex connector. Alternately, custom hardware cables and/or interfaces can be produced to fit your specific application requirement.
SOFTWARE
The card is supported for use in most operating systems and includes a free DOS, Linux, and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes CE, Windows IoT, VxWorks, etc. Full register-level documentation of all features ensures easy compatibility in any application environment.
Downloads
Available Software Downloads
Available Datasheets
- View / Download the M.2-DIO-24S Data Sheet (.PDF)
Drivers and Downloads
Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents
Custom Software
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.
Further information about available ACCES Software:
- Redistributing Windows Drivers
- A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
aioWDM.VxWorks
ACCES has successfully partnered with Wind River to bring our entire line of PCI and PCI Express DAQ cards to VxWorks 7!
VxWorks 7 VxBus Gen 2 drivers, with easy-to-use API-libraries, are available for this product, including full source and sample code.
Designed to be compatible with our AIOWDM.dll Windows driver & API, this kernel module adds zero% CPU-cycle overhead to your VxWorks runtimes while allowing the lowest-latency hardware register access possible.
You can find more information about our VxWorks libraries and services on our Wind River Silver Partner page.
PC Interface
- M.2 Card: PCI Express interface
- Key: B+M. Works in all "B" or "M" keyed sockets
- Size: 2280 or 2260
Digital Input / Output Interface
- Digital Bits: 24
- Compatibility: 8255 Mode 0
- Performance: 1 μs per 32-bit transaction max, ∼3.5μs in Windows
- Digital Inputs
- Logic High: 2.0V to VCCIO (3.3VDC, 5VDC tolerant)
- Logic Low 0V to 0.8V
- Digital Outputs (Standard Version)
- Logic High: 2.0V (min) 24mA source
- Logic Low: 0.55V (max) 24mA sink
- Power Output: +3.3 VDC via 0.5A polyfuse (resetting)
Environmental
- Temperature
- Operating: 0°C to 70°C (order -T option for industrial temperature -40°C to 85°C)
- Storage: -65°C to 150°C
- Humidity: 5% to 95%, non-condensing
- Power required: +3.3VDC @ 330ma (typical)
Physical
- Key: B+M. Works in all "B" or "M" keyed sockets
- Size: 2280 or 2260
- Length: 80mm (3.15″) or 60mm (2.36″)
- Width: 22mm (0.866″)
- Weight: 6.2 grams
- I/O connector
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
- On cable: Male, D-Sub Miniature, 37-pin
- Mating:Female, D-Sub Miniature, 37-pin
Regulatory Compliance
- This product is designed to be in full compliance with CE requirements.
OEM and volume pricing available, please call us.
Model | Price (USD) |
---|---|
M.2-DIO-24S | 119.00 |
M.2-DIO-24 | 94.00 |
ORDERING GUIDE | |
---|---|
M.2-DIO-24S | 24 Digital I/O with Change-of-State (CoS) IRQ M.2 Card |
M.2-DIO-24 | 24 Digital I/O M.2 Card |
Accessories | |
CAB-M.2-DB37M | 40-pin to DB37-pin male cable $29 |
CAB-M.2-40P | 40-pin to 40-pin discreet cable $29 |
M.2-HDW-KIT2 | 2mm mounting hardware $1 |
ADAP37 | Screw terminal adaptor for use with 37-pin male connector $40 |
STB-37 | DIN-rail mountable screw terminal board for 37-pin connector $39 |
STA-37 | 37-pin screw terminal board $79 |
CAB37-18 | Ribbon cable, female 37-pin connectors on each end, 18" $25 |
CAB37-36 | Ribbon cable, female 37-pin connectors on each end, 36" $29 |
CAB37MF-36 | Ribbon cable, male to female 37-pin connectors, 36" $29 |
CAB37FM-18 | Ribbon cable, male to female 37-pin connectors, 18" $29 |
Model Options (call for pricing) | |
-T | Extended temperature operation (-40° to +85°C) |
-TTL | CMOS signaling with user supplied VCCIO (+5V) |
