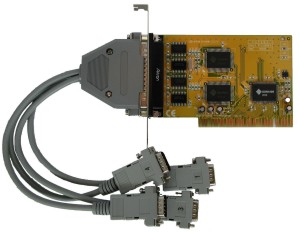

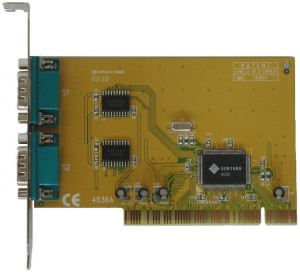

PCI-COM232-2 and PCI-COM232-4
Dual and Quad Port RS-232, PCI-Bus Serial Communications Card
Features
- Universal PCI, PCI-X, 3.3V and 5V compatible (Call for PCI-Express availability)
- Two or Four RS-232 Serial Communication ports.
- Throughput up to 921.6 Kbps.
- 32-Bit PCI-bus Interface.
- UART includes 16-Byte FIFO Buffer.
- Compatible w/ MS-DOS, Windows, & Linux.
- FCC and CE approved
- Designed, made, supported, and manufactured in the USA
![](/cards/pci-com232-4.jpg)
![](/images/enlarge.jpg)
![](/cards/pci-com232-2.jpg)
Drivers and Downloads
Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents
Information about our Free Software packages:
ACCES is proud to provide a full suite of software support with every Data Acquisition product. We are committed to supporting the most popular operating systems and platforms for our customers. Currently we are actively supporting Windows XP through Windows 10, including "Server 2008," "Embedded," and "Compact" flavors in both 32-bit and 64-bit for all plug-and-play products including PCI, PCI Express, USB, and more. Many products continue to ship with support for additional operating systems such as DOS, Windows 95, 98, Me, NT4, and 2000.
Samples
Among the software we deliver with our products are sample programs in a wide variety of programming languages. These samples are used to demonstrate the software interfaces to our products — and many can be used as-is in your production environments, or to test functionality of the devices out-of-the-box. We're currently actively supporting sample programs in Visual C# and Delphi with many devices including samples in Visual Basic and Visual C/C++, as well as Borland C/C++ 3.1 for DOS. Additionally we provide National Instruments LabVIEW compatible DLLs and demonstration VIs for many of our devices.
Drivers
Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the Linux kernels 2.6 and newer and recent macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.
Setup Programs and Utilites
Our Data Acquisition devices also include a graphical setup utility that walks you through the process of configuring any option jumpers or switches on the device, as well as explaining a little about the various connectors present.
Many devices also include utility programs - little tools to make your use of the device easier, such as WinRISC, a "Really Incredibly Simple Communications" terminal program that lets you get started instantly with serial devices.
"Register Level" Documentation
Besides all this software in all these languages and operating systems ACCES has a policy of open and transparent development: none of our lowest-level "register" interfaces are hidden from you — we document every register in every bus card, every command in every serial board, and every usb control transfer in every USB Data Acquisition board. These lowest-level interfaces allow you to develop for our products in ANY operating system or language, regardless of our actively supporting it or having a driver for it. We have customers actively developing in ADA, Android, Python, Java, MATLAB, Solaris, and more, just by referring to our complete low-level interface documentation! And we provide the full source code to all of our drivers, regardless of operating system, to give you an even bigger head start in your own development tasks.
No Fees or Royalties
All of this software is provided at no additional charge, and is licensed under any of a variety of flexible — and royalty free — options. Check out our software license explanation if you'd like more information.
Custom Software
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.
Further information about available ACCES Software:
- Redistributing Windows Drivers
- A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
AIOSerial/VxWorks
ACCES has successfully partnered with Wind River to bring our entire line of PCI and PCI Express Serial Communication cards to VxWorks 7! All ACCES plug-and-play serial cards are now supported with our VxWorks driver, including RS232, RS422, RS485 (2- and 4-wire) and baud rates up to 10Mbps.
Designed as an update to the existing vxbPciNs16550Sio.c driver, we've added support for ×8 baud rates, proper handling of the unique register location of the 4th port in the Pericom PI7C9X7954 UART, and configuring the serial protocol from your application software.
With this driver suite all ACCES PCI, PCI Express, PCI Express Mini Card, M.2, PCI-104, PCIe/104, and all related "PCI Style" plug-and-play serial cards will detect and install as standard VxWorks SIO ports.
Regulatory Compliance
- This product is in full compliance with CE requirements.
Model | Price (USD) |
---|---|
PCI-COM232-2 | 69.00 |
PCI-COM232-4 | 124.00 |
