104e-mPCIe-4A and 104e-mPCIe-2A

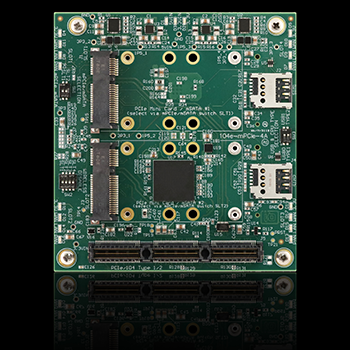

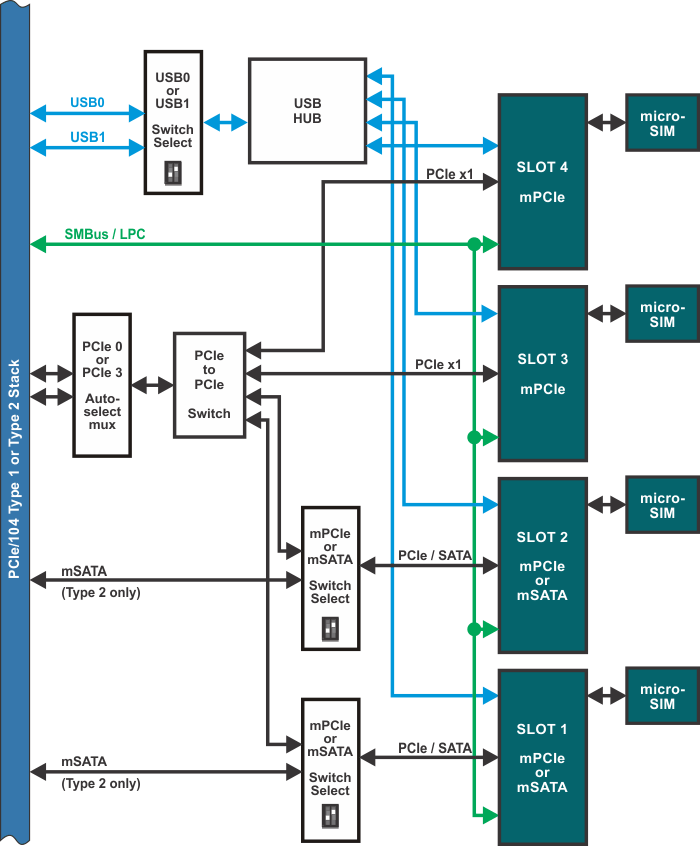

The 104e-mPCIe-4A is a Type 1 or Type 2 PCIe/104 carrier board designed to support up to four PCI Express mini cards, in either half or full lengths, while only consuming one x1 PCIe lane from the bus. In addition the board supports up to two mSATA devices (via dip-switch selection -Type 2 only), and all four sockets support USB, SMBus, and wireless mPCIe devices — including micro-SIM sockets, per socket, for cellular (WAN) use.

The advanced carrier board is a great way to use ACCES’ full industrial line of mPCIe products. These include isolated DAQ, serial, analog, digital I/O (TTL, LVTTL, relay, FET) and quadrature cards.

Having four peripheral device sockets on one PCIe/104 stack-height card truly multiplies the flexibility of your embedded designs without compromising size or ruggedness.

Special Order

Please contact ACCES with your precise requirement. Examples of special orders would be conformal coating, custom configurations or product labeling, and more. We will work with you to provide exactly what is required i.e. "MCOTS".

Accessories and Connections

Available accessories include our entire mPCIe product line as well as various mounting hardware.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

PC Interface

• PC Interface: PCIe/104 Type 1 or Type 2
• I/O Interface: PCI Express Mini Card Sockets (x4 or x2) (each with PCIe, USB, SMBus, Micro-SIM socket). mSATA (x2) on Type 2 PCIe/104 only

Environmental

• Temperature
• Operating: -40°C to +85°C
• Storage: -40°C to +85°C
• Humidity: 5% to 95%, non-condensing
• Power required: +5VDC @ 400mA typical (no load) (supplied by PCIe/104 stack)

Physical

• Length: 3.55"
• Width: 3.775"

Regulatory Compliance

• This product is designed to be in full compliance with CE requirements.

OEM and volume pricing available, please call us.
