USB-IDIO-16L Family

The USB-IDIO-16L is an ideal solution for adding portable, easy-to-install isolated input and solid state output capabilities to any computer with a USB port. The USB-IDIO-16L is a USB 2.0 high-speed device, offering the highest speed available with the USB bus. It is fully compatible with both USB 1.1 and USB 2.0 ports. The unit features hotplug functionality allowing for quick connect/disconnect whenever you need additional I/O on your USB port.

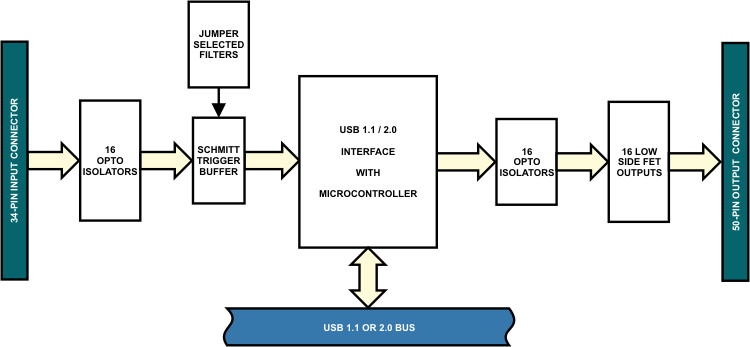

Featuring 16 low side power MOSFET switch outputs and 16 optically isolated digital inputs, the unit is the smallest of its kind for digital monitoring and control using USB. The isolated, non-polarized inputs may be driven by either DC sources of 3-31V (or higher by special order) or AC sources at frequencies of 40Hz to 10kHz. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others. Optically isolating the digital inputs from each other, and from the computer, assures smooth, error-free data transmission in noisy, real-world environments. The input channels are accessed via a 34-pin IDC type vertical header. The fully protected isolated outputs are de-energized at power-up to prevent an unintended control output signal. Data to the solid state outputs are latched and are available via a 50-pin IDC type vertical header. The unit contains an internal, removable screw termination board with onboard removable screw terminals to simplify wiring c onnections.

These boards are especially useful in applications where high common-mode external voltages are present. Isolation is required to guard electronics from transient voltage spikes and offers greater common-mode noise rejection in electronically noisy surroundings containing industrial machinery and inductive loads. These applications include factory automation, energy management, industrial ON/OFF control, security systems, manufacturing test, and process monitoring. In addition to protecting industrial applications from accidental contact with high external voltages, the isolation provided eliminates troublesome ground loops.

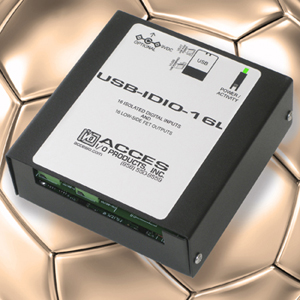

The USB-IDIO-16L was designed to be used in rugged industrial environments but is small enough to fit nicely onto any desk or testing station. The board is PC/104 sized (3.550 by 3.775 inches) and ships inside a steel powder-coated enclosure with an anti-skid bottom. A DIN rail mounting provision is available for installation in industrial environments.

USB-IDIO-16L Board	USB-STB-84 Installed	Terminals Wired	Ready to Go!

Firmware 2.0 Features

Onboard Watchdog Timer. If your application fails to communicate with the device within a specified timeout period (up to hundreds of seconds) the onboard intelligence will change all the output ports and values to the configured "safe" state.

Need a DAC to power up at 1 Volt? Want the digital output port to generate a square wave as soon as the firmware is loaded? Now you can configure the power-on default states for all possible outputs.

Command the onboard intelligence to perform digital input debouncing and latching. Debouncing time constants from hundreds of microseconds to hundreds of milliseconds allows a wide variety of low-pass filtering options. Latching inputs record low- and high-going pulses that your application may otherwise have missed.

PWM allows programmable duty-cycle square wave output on any digital output. MAP is our new Matrix Mapping feature, wherein you can command the onboard intelligence to automagically copy the state of one bit onto another bit, with no computer interaction required.

OEM USB/104 FORM FACTOR

What makes the OEM option unique is that its PCB size and mounting holes match the PC/104 form factor (without the bus connections). This allows our rugged digital board to be added to any PCI-104 or PC/104 stack by connecting it to a simple USB port usually included on-board with embedded CPU form factors such as EBX, EPIC, and PC/104 — especially important since many newer CPU chipsets do not support ISA and have plenty of USB ports. Future stacks will be using the extremely fast PCI Express bus which is essentially overkill for simple digital monitoring and control. The USB-IIRO-16 OEM board can also be added into many pre-existing standard PC/104 based systems and enclosures.

The type B USB connector features a high retention design that complies with the class 1, Div II minimum withdrawal requirement of over 3 pounds of force. This connector has an orange color-coded insulator to differentiate it from standard USB connectors.

High Retention USB Connector

The ever-growing presence of USB in the industrial/military marketplace has driven the need for USB connections to be reliable, dependable, and unfailing. Gone are the days of loose USB connections. A type B USB connector is used on all ACCES USB/104 products which features a high retention design that complies with the class 1, Div II minimum withdrawal requirement of over 3 pounds of force (15 Newtons). This connector has an orange color-coded insulator to quickly differentiate it from standard USB connectors. Using these USB connectors increases reliability in your system and ensures a tight connection. For embedded OEM type applications, an additional miniature USB input header is provided in parallel with the type B connector.

ACCESSORIES

Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity.

SOFTWARE

The module utilizes a high-speed custom function driver that is 50-100 times faster than the USB human interface device (HID) driver used by many competing products. This approach maximizes the full functionality of the hardware along with capitalizing the advantage of high-speed USB 2.0. The USB-IDIO-16L is supported for use in most USB supported operating systems and includes a free Linux (including Mac OS X) and XP -> 10, both 32 & 64 bit-compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also incorporated is a graphical setup program in Windows. Third-party support includes a Windows standard DLL interface usable from most popular application programs, and includes example LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, etc.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Information about our Free Software packages:

ACCES is proud to provide a full suite of software support with every Data Acquisition product. We are committed to supporting the most popular operating systems and platforms for our customers. Currently we are actively supporting XP -> 10, both 32 & 64 bit, including "Server 2008," "Embedded," and "Compact" flavors for all plug-and-play products including PCI, PCI Express, USB, and more. Many products continue to ship with support for additional operating systems such as DOS, Windows 95, 98, Me, NT4, and 2000.

Samples

Among the software we deliver with our products are sample programs in a wide variety of programming languages. These samples are used to demonstrate the software interfaces to our products — and many can be used as-is in your production environments, or to test functionality of the devices out-of-the-box. We're currently actively supporting sample programs in Microsoft Visual C#, Visual Basic, Delphi, and Visual C/C++, with many devices including samples in Borland C/C++ 3.1 for DOS. Additionally we provide National Instruments LabVIEW compatible DLLs and many demonstration VIs for our devices.

Drivers

Drivers for various operating systems are also provided, including active support for Windows XP -> 10 — all in both 32-bit and 64-bit flavors, and including consumer, server, and embedded varieties — as well as the 2.6 and newer Linux kernels and recent OSX / macOS versions. Many products continue to ship with driver support for Windows 95, 98, Me, NT4, and Windows 2000, but support for these operating systems is considered deprecated.

Setup Programs and Utilites

Our Data Acquisition devices also include a graphical setup utility that walks you through the process of configuring any option jumpers or switches on the device, as well as explaining a little about the various connectors present.

Many devices also include utility programs - little tools to make your use of the device easier, such as EWriter, a program that allows you to read and write data in the user-accessible EEPROM locations on all our USB data acquisitition products; or WinRISC, a "Really Incredibly Simple Communications" terminal program that lets you get started instantly with serial devices.

"Register Level" Documentation

Besides all this software in all these languages and operating systems ACCES has a policy of open and transparent development: none of our lowest-level "register" interfaces are hidden from you — we document every register in every bus card, every command in every serial board, and every usb control transfer in every USB Data Acquisition board. These lowest-level interfaces allow you to develop for our products in ANY operating system or language, regardless of our actively supporting it or having a driver for it. We have customers actively developing in ADA, Android, Python, Java, MATLAB, Solaris, and more, just by referring to our complete low-level interface documentation! And we provide the full source code to all of our drivers, regardless of operating system, to give you an even bigger head start in your own development tasks.

No Fees or Royalties

All of this software is provided at no additional charge, and is licensed under any of a variety of flexible — and royalty free — options. Check out our software license explanation if you'd like more information..

USB and Performance

Our USB Data Acquisition products use our "AIOUSB" driver package in Windows and Linux. This driver package includes 32-bit and 64-bit support, and consists of low-level driver components and a high-level API library. This custom interface driver enables our USB devices to achieve 4000 transactions per second, compared to the competitions' "HID" drivers that cap out around 50 transactions per second. You can read all about the API in the USB Software Reference Manual linked below, and included in every applicable Software Package. (The Linux version of the AIOUSB API is almost identical to the Windows API, and is documented in the aiousb.html file included in the Linux software package.) Like all of our software, full source code is always provided.

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

Specifications

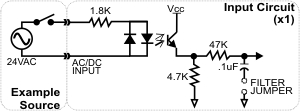

• Isolated Inputs
• Number: Sixteen
• Type: Non-polarized, optically isolated from each other and from the computer (CMOS compatible)
• Voltage: 3 to 31 DC or AC RMS (40 Hz to 10 kHz)
• Isolation: 500V* (see manual) channel-to-ground and channel-to-channel
• Resistance: 1.8K ohms in series with opto-coupler
• Filter Response: Rise Time = 4.7 mS / Fall Time = 4.7 mS
• Non-Filter Response: Rise Time = 10 uS / Fall Time = 30 uS

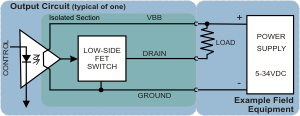

• Isolated FET Outputs
• Number: Sixteen solid state FETs
• Output Type: Low-side power MOSFET switch. Protected against short circuit, over-temperature, ESD, and can drive inductive loads.
• Voltage Range: (customer supplied) 5-42VDC recommended for continuous use.
• Current Rating: 500mA maximum
• Turn-on time: 90uS (typical)
• Turn-off time: 110uS (typical)
• Bus Type
• Universal Serial Bus: USB 2.0 high-speed, USB 1.1 full-speed compatible
Environmental
• Operating Temperature Range: 0° to 70°C
• Storage Temperature Range: -40° to +85°C
• Humidity: Maximum 90% RH, without condensation
• Board Dimension: 3.550 x 3.775 inches
• Box Dimension: 4.00 x 4.00 x 1.4 inches
• Power
• +5VDC provided via USB bus cable up to 500mA**
• +5V @ 35mA typical (all FETs off, add 5mA per FET)
• +5V @ 115mA typical (all FETs ON)
**Optional on-board external power circuitry and AC/DC adapter can be ordered (“-P” option) if current use is expected to be greater than what can be supplied by the USB bus. Please check to see how much current your USB port can supply and how much current you anticipate using.

Regulatory Compliance

• This product is designed to be in full compliance with CE requirements.
