The USB to serial IND series are rugged, industrial, serial communications adapters designed for use in demanding real-world applications such as transportation, military, embedded control systems, remote data acquisition, mobile, and more. These intelligent modules provides a cost-effective solution for transferring high-speed asynchronous serial data over USB. Use legacy serial devices with any PC or embedded system with a USB port. The adapters provide easy connectivity between the computer and standard communication ports or remote serial devices. No PC reconfiguration, assignment of IRQs, or jumper settings required. The adapter will be recognized as a USB to Serial Adapter and install in the system as a standard COM port.

Applications

• Printers
• Scales
• Transportation
• Barcode Readers
• Mobile
• GPS Devices
• Point of Sale
• Medical

Accessories

The ADAP9 accessory provides a screw terminal connection to break out the RS-232, RS-422, and RS-485 signals on the DB9M connector.

Connections to System

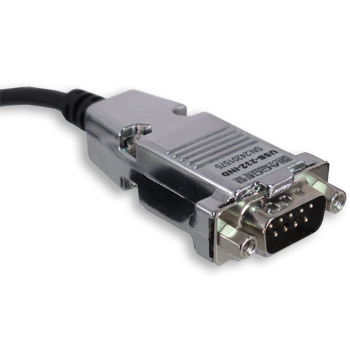

The USB serial converter is equipped with a 6 foot, fully shielded USB cable, a USB type A connector for connection to a computer USB port, and a male DB-9 for connection to a RS-232, RS-422, or RS-485 equipped data or communication terminal.

SOFTWARE

The USB serial converter installs into any operating system as a standard serial COM device, allowing all 3rd party software to operate the serial port as usual. Samples in a variety of languages and environments are provided, including a Windows utility "WinRISC", a "Really Incredibly Simple Communications" terminal program. Drivers are provided for Windows (including Windows CE) and Linux, and are available at no cost for most other operating systems.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

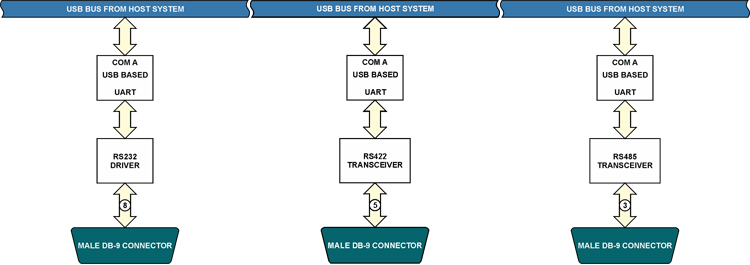

Communications Interface

• Serial Standard: RS-232, RS-422, or RS-485
• Connector: DB-9, Male
• Communications Chip: Type FT232R UART with 128-byte receive/256-byte transmit FIFO buffers
• Character Length: 7 or 8 bits
• Parity: Even, odd, mark, space or none
• Stop Interval: 1 or 2 bits
• RS-232 Serial Data Rates: 300bps up to 1Mbps asynchronous
• RS-422 Serial Data Rates: 300bps up to 3Mbps asynchronous
• RS-485 Serial Data Rates: 300bps up to 3Mbps asynchronous
• Input/Output Voltage: ±25V (RS-232), ±14V (RS-422/485)
• Transmitter Output Drive: Up to 60mA, with thermal shutdown (RS-232)
• Receiver Input Sensitivity: ±200mV
• ESD Protection: ±15kV on all signal pins
• Termination: 120Ω w/0.01µF capacitor (RS-422/485 Factory Option)
• RTS Control: Automatic in RS-485 mode
• Bias: Transceiver and Receiver via 10KΩ (RS-422/485 models)

Bus Type

• USB Specification: Full-Speed USB 2.0 device, USB 3.0 and 1.1 compatible

Environmental

• Operating Temp: -40°C to +85°C
• Storage Temp: -65°C to +150°C
• Humidity: 5% to 95%, non-condensing
• Power Required: 5VDC at ~12mA with no load (~22mA loaded) USB Bus Powered (No external power supply required)
• Cable Length: 6 feet

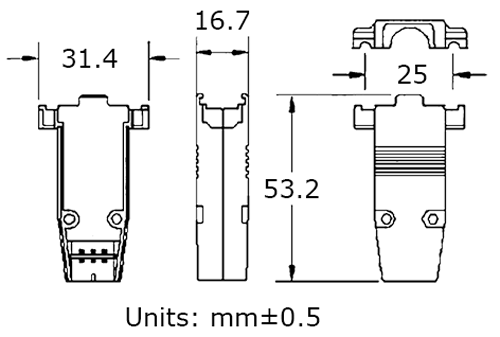

• Backshell Dimensions: 1.236? x 0.657? x 2.094? (31.4mm x 16.7mm x 53.2mm)
• Approvals: RoHS

Regulatory Compliance

• This product is designed to be in full compliance with CE requirements.

OEM and volume pricing available, please call us.
