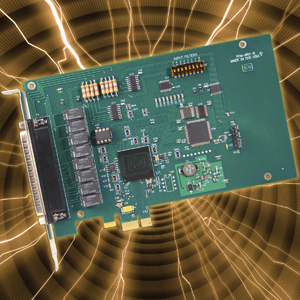

PCIe-IIRO-8
PCI Express Card with Eight Isolated Inputs, Eight Relay Outputs, and Change of State Detection
Features
- Eight optically isolated, non-polarized digital inputs
- Switchable filters on inputs for electrically noisy environments
- Eight electro-mechanical relay outputs
- Optically isolated channel to channel and channel to ground
- Can detect input state change and assert interrupt
- Automatically detected under Windows
- Designed, made, supported, and manufactured in the USA
FACTORY OPTIONS
- Extended temperature operation (-40° to +85°C)
- RoHS compliant version
- Support for Wind River VxWorks (call for ordering information)
This product is a x1 lane PCIe isolated digital input and relay output board with Change of State (COS) detection capabilities.

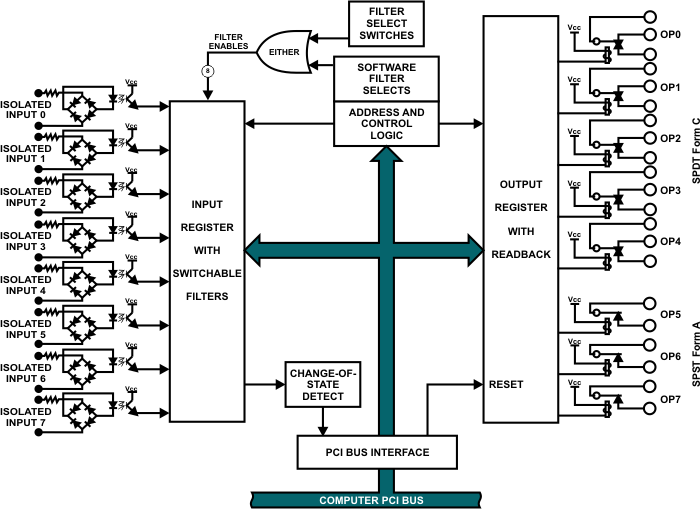

The isolated inputs can be driven by either AC or DC and are not polarity sensitive. Input signals are rectified by a diode bridge and applied to the inputs of opto-isolators. A 470 ohm resistor in series provides current limiting. Standard 12/24 AC control transmitter outputs can be accepted as well as DC voltages. The input voltage range is 5V to 24V (rms). To extend the input voltage range, you may connect external resistors in series.
The electro-mechanical relay outputs of the PCIe-IIRO-8 are comprised of five form C SPDT outputs and three Form A SPST (normally-open) type. The relays are all de-energized at power-on. Data to the relays is latched.
The card is 6.6 inches in length and 4.2 inches seated height. I/O wiring connections for this board are via a male 37-pin D-sub connector. A ribbon cable can be used to connect this card to termination panels.
Accessories
SOFTWARE
The card is supported for use in most operating systems and includes a free DOS, Linux, and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
Downloads
Available Reference Manuals
- View / Download the PCIe-IIRO-8 Manual (.PDF)
Available Software Downloads
Available Datasheets
- View / Download the PCIe-IIRO-8 Data Sheet (.PDF)
Drivers and Downloads
Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents
Custom Software
ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.
Further information about available ACCES Software:
- Redistributing Windows Drivers
- A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.
aioWDM.VxWorks
ACCES has successfully partnered with Wind River to bring our entire line of PCI and PCI Express DAQ cards to VxWorks 7!
VxWorks 7 VxBus Gen 2 drivers, with easy-to-use API-libraries, are available for this product, including full source and sample code.
Designed to be compatible with our AIOWDM.dll Windows driver & API, this kernel module adds zero% CPU-cycle overhead to your VxWorks runtimes while allowing the lowest-latency hardware register access possible.
You can find more information about our VxWorks libraries and services on our Wind River Silver Partner page.
Digital Inputs
- Number of inputs: 8
- Type:Non-polarized, optically isolated from each other and from the computer. (not TTL/CMOS compatible)
- Voltage Range: 5 to 24V DC or AC (50 to 1000 Hz)
- Isolation: 500V*(see manual) channel to channel and channel to ground
- Input Resistance: 470 ohms in series with two diodes and an LED
- Response Time: 10 mSec w/filter, 20 uSec w/o filter
Relay Outputs
- Number of outputs: 8
- Contact Rating: 2A carry current, bifurcated, gold clad, silver palladium
- Contact Arrangement: Channels 0-4 are SPDT Form C and channels 5-7 are SPST Form A.
- Contact Rating: Initial 100 milliohms maximum
- Contact Life: mech'l: 5 million operations minimum; elect'l: 5 million operations minimum at full load
- Operating Time: 2 milliseconds maximum
- Release Time: 1 milliseconds maximum
- Regulatory Approvals: UL and CSA
Interrupts
When enabled by software or hardware interrupts are generated when digital inputs change state.
Power Required
+5VDC @ 0.675 A (all relays ON) for PCI-IIRO-8
Environmental
- Temperature: Operating 0 to +70°C
- Storage: -40 to +85°C
- Humidity: 0 to 90 percent (non-condensing)
- Weight: Approx. 8 oz. (227 grams)
- Size: PCIe-IIRO-8 is 6.6" (168 mm) long
Regulatory Compliance
- This product is in full compliance with CE requirements.
OEM and volume pricing available, please call us.
Model | Price (USD) |
---|---|
PCIe-IIRO-8 | 289.00 |
CAB78-37/2 | 80.00 |
STB-37/2 Kit | 159.00 |
