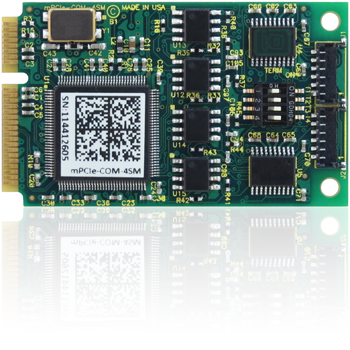

mPCIe-COM-4SM Family

The mPCIe-COM-4SM family of cards feature high performance 16C950-class UARTs. Available in 4-port and 2-port versions, each port is capable of communication speeds up to 921.6kbps in RS-232 (differential modes support speeds as high as 3Mbps) and has 128-byte deep transmit and receive FIFOs. Large FIFOs protect against data loss in multitasking operating systems, reduce CPU utilization, and improve data throughput, while reducing or eliminating inter-character or inter-packet pauses. The advanced integrated circuit with pre-scalar supports a wide variety of custom baud rates, and any rates not otherwise achievable can be supported via a custom factory-installed crystal oscillator (up to 10Mbps!).

RS-232, RS-422, or RS-485 can be software selected, per port, and the selection is stored in non-volatile memory for future use. If you don’t need that much flexibility you can order versions with only RS422/485 or even pure RS232. The RS232 ports provided by the card are 100% compatible with every other industry-standard serial COM device, supporting TX, RX, RTS, and CTS. RS422 mode uses the same transceivers as the RS-485 specification, allowing perfect 4-wire RS-422 and RS-485 compatibility – and the device supports RS-485 4-wire.

Communication is possible either with custom application software, with off-the-shelf applications (such as HyperTerminal), or with provided samples and utilities, including WinRISC™ (“Windows Really Incredibly Simple Communication”).

The serial ports on the device are accessed using a low-profile, latching, 6-pin Hirose connector. Optional breakout cables are available, and bring each port connection to a panel-mountable DB9-M connector.

Applications

• Health and Medical Systems
• Point of Sale (POS)
• Automated Retail Kiosks
• Embedded Systems
• Traffic Systems
• Factory Automation and Process Control
• Retail
• Hospitality
• Gaming
• Kiosks

Special Order

Please contact ACCES with your precise requirement. Examples of special orders would be custom oscillators, conformal coating, custom software or product labeling, and more. We will work with you to provide exactly what is required.

Accessories and Connections

Available accessories include 4 or 2-port DB-9 cable kits and screw terminal board for quick and easy connectivity, as well as 2mm and 2.5mm mounting hardware. The ADAP9 accessory provides a screw terminal connection to break out the RS232, RS422, and RS485 signals on the DB9M connector. I/O is accessed via Hirose DF57 6-pin latching connectors on the card.

SOFTWARE

A complete driver support package is provided including an easy-to-use Windows terminal program for testing your COM ports. This simplifies the verification of proper COM port operation. The card installs as standard COM ports in all operating systems including DOS, Linux (including Mac OS X) and 32-bit and 64-bit Windows. Additional drivers may be available for a wide variety of operating systems including Windows CE, vxWorks, WES7, and more. Please contact the factory for compatibility with your specific OS.

Drivers and Downloads

Full list of available Downloads: Software Packages, Drivers, Manuals, and other documents

Custom Software

ACCES also offers Custom Software Services for our products. Our prices are unbelievably low, often as inexpensive as free! If you need something tweaked to support your needs, or an entire enterprise application developed from scratch, it is definitely worth your time to inquire with us, first.

Further information about available ACCES Software:

Redistributing Windows Drivers

A list of ACCES drivers and the files that compose them under different versions of Windows, so you can easily redistribute ACCES cards and drivers.

PC Interface

• PCI Express Mini Card: Type F1 "Full Length" V1.2

Communications Interface

• Connector
• I/O: Hirose DF57 6-pin, latching
• Mating: Hirose DF57H-6S-1.2C
• Serial Ports: 4 (or 2) per-port software selectable RS422 & RS485, and/or RS232 depending on model
• UART: Quad 16C950 with 128-byte FIFO for each transmit & receive buffer
• Baud Rates: up to 921.6k baud in RS-232 up to 3MBaud in differential modes advanced-prescaler allows a wide variety of unusual baud rates to be achieved. Up to 10Mbps via custom crystal option.
• Character length: 5, 6, 7, 8 bits (contact factory for assistance with 9-bit data)
• Parity: Even, Odd, None, Mark, Space
• Stop Interval: 1, 1½, 2 bits
• Flow Control: RTS/CTS (RS-232 only), Xon/Xoff, None

Environmental

• Operating Temperature: -40°C to 85°C
• Storage Temperature: -65°C to 150°C
• Humidity: 5% to 95%, non-condensing
• Power required: +3.3VDC @ 1.6W (typical)
• ESD Protection: ±15kV on all signal pins (IEC 61000)

Physical

• Weight:6.4 grams

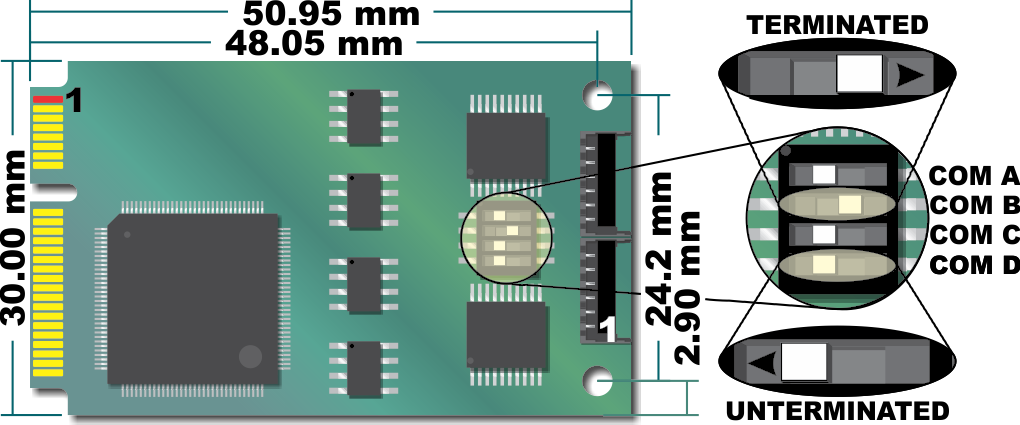

• Size: length: 50.95mm (2.006″); width: 30.00mm (1.181″)

Regulatory Compliance

• This product is designed to be in full compliance with CE requirements.

OEM and volume pricing available, please call us.
